Chevalier FCL-140

Suzhou Chevalier Precision Machinery Co., Ltd. · Suzhou

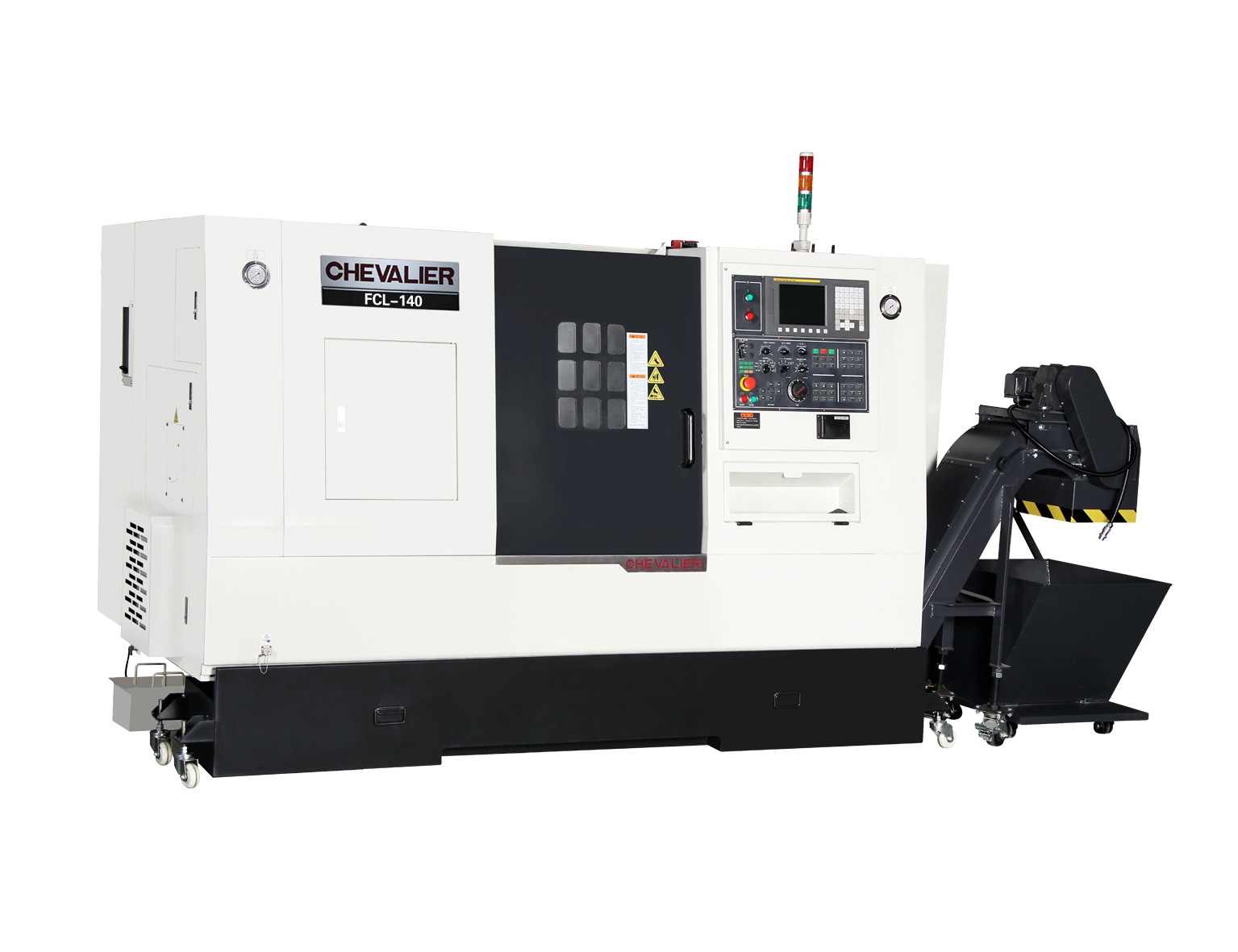

Original Chevalier FCL-140 manufacturer photograph
Whole original FCL-140 individual-page photograph. Confirm supplied chuck, tailstock, control and conveyor direction.
  1. Bed / saddle swing470 / 284 mm
  2. Maximum machining diameter / length260 / 290 mm
  3. Distance between centres397 mm
  4. Spindle nose / chuckA2-5 / 6 inch
  5. Spindle through-hole / maximum bar passage57 / 45 mm

FCL-140 is Suzhou Weiyang’s Chevalier small-part CNC turning reference. The linked original catalogue’s FCL-140 column lists a 260 mm maximum machining diameter and 290 mm machining length. Bed swing of 470 mm and saddle swing of 284 mm are different clearance figures; they are not a 470 mm cutting capacity. Prove jaw, holder, turret and tailstock clearance on the actual blank and fixture.

The catalogue separates a 57 mm spindle through-hole from a 45 mm maximum bar passage, with an A2-5 nose, six-inch chuck and 6000 rpm spindle. Establish the liner, grip, feeder interface and stock condition together. For chuck work, specify grip allowance and the unsupported length; the 397 mm centre distance does not replace the cutting-length check.

The individual page describes a ten-tool hydraulic cam turret, MT4 hydraulic tailstock and an optional gang-tool arrangement. FCL-140A is a distinct catalogue column and the FCL-200MC live-tool equipment is not transferred to this model. Trial the actual loading, tool sequence, support and unload/part-off route, then inspect released part size, form and datum relationships.

Additional specifications

Maximum spindle speed
6000 rpm
X / Z rapid traverse
30 / 30 m/min
Tooling
10-tool hydraulic cam turret; confirm installed package
Tailstock centre taper
MT4
Published control
FANUC-0iTF(5); confirm supplied version

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
