ProcessStraight bevel gear generation with two reciprocating planing tools
Maximum module2.5 mm
Pitch diameter reference125 mm at 10:1 ratio
Maximum pitch-cone element length63 mm
Root-cone angle / maximum ratio4–90° / 10:1 at 90° shaft angle
Maximum tooth height / face width5.5 / 20 mm

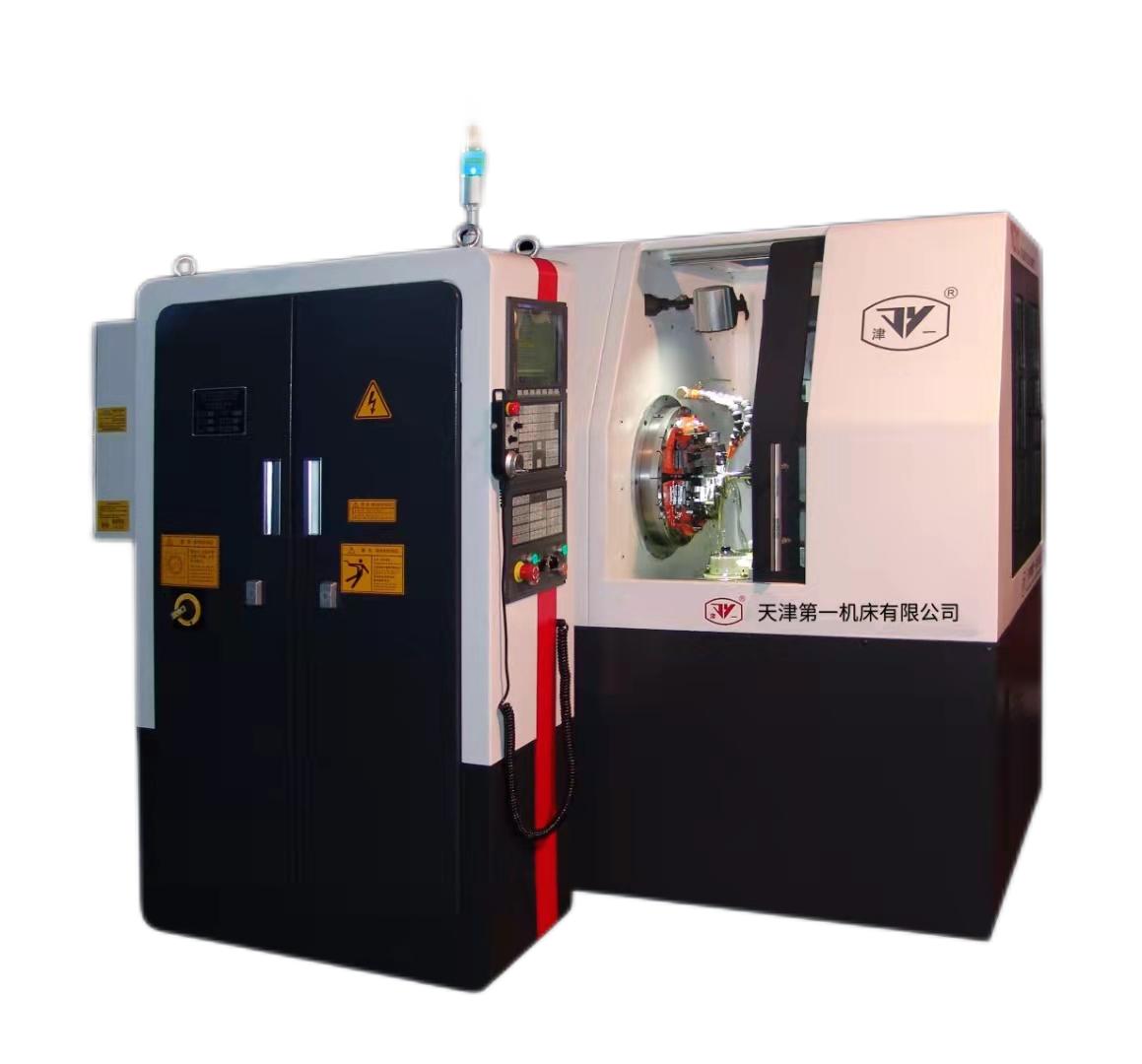

TMTW YK2312 manufacturer image

Whole original photograph from the exact YK2312 model page.

YK2312 is Tianjin First Machine Tool’s CNC straight bevel gear generator using two reciprocating gear-planing tools. It addresses small diameter and small module gears in single-piece, small-batch or batch production. Its exact table lists 2.5 mm maximum module, 125 mm pitch diameter at 10:1 ratio and 63 mm maximum pitch-cone element length. It performs cutting, not YK2632’s grinding stage; choose it from the incoming blank and required finishing route.

The root-cone angle range is 4–90°, maximum ratio 10:1 at 90° shaft angle, maximum tooth height 5.5 mm and face width 20 mm, with tooth count 5–150. Review these conditions together. The work spindle uses Morse No.4 taper with Ø20 H11 through bore, and its end-to-machine-centre distance is 30–190 mm. The hub, shaft, arbor and datum must be drawn explicitly rather than treating pitch diameter as the complete fixture envelope.

The page names GR83-60I tools, 250–700 reciprocating strokes per minute and 28 mm maximum tool travel. Overtravel is 3 mm at the small tooth end and 5 mm at the large end. Agree cutter setting, sharpening and stroke clearance using the actual gear. Four axes perform three simultaneous movements. GSK control/servos are standard; Siemens or FANUC are requested alternatives. Guarding and a chip collection basket are described, with integral coolant/hydraulic tanks and a temperature-controlled sealed electrical cabinet.

The published GB6 capability statement does not identify the complete standard edition and inspection conditions. Agree required gear characteristics, gauge uncertainty, thermal conditions and the complete part or mating-pair test. Trial the production material and arbor, including both-flank cutting, loading and inspection; strokes per minute are not gears per hour. The table lists a 1700 × 1650 × 1700 mm body at 1.8 tonnes and 380 V supply. Obtain current delivered options and installation support. The exact model page’s whole original photograph is retained.

Same listing
YK2632

Additional specifications

Tooth count
5–150
Work-spindle taper / through bore
Morse No.4 / Ø20 H11
Work-spindle end to centre
30–190 mm
Maximum tool travel
28 mm
Tool overtravel
3 mm small end / 5 mm large end
Tool / reciprocating rate
GR83-60I / 250–700 strokes per minute
Control / motion
GSK standard; Siemens or FANUC on request; four axes, three simultaneous
Body / mass / supply
1700 × 1650 × 1700 mm / 1.8 tonnes / 380 V

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
