TMTW YK2632

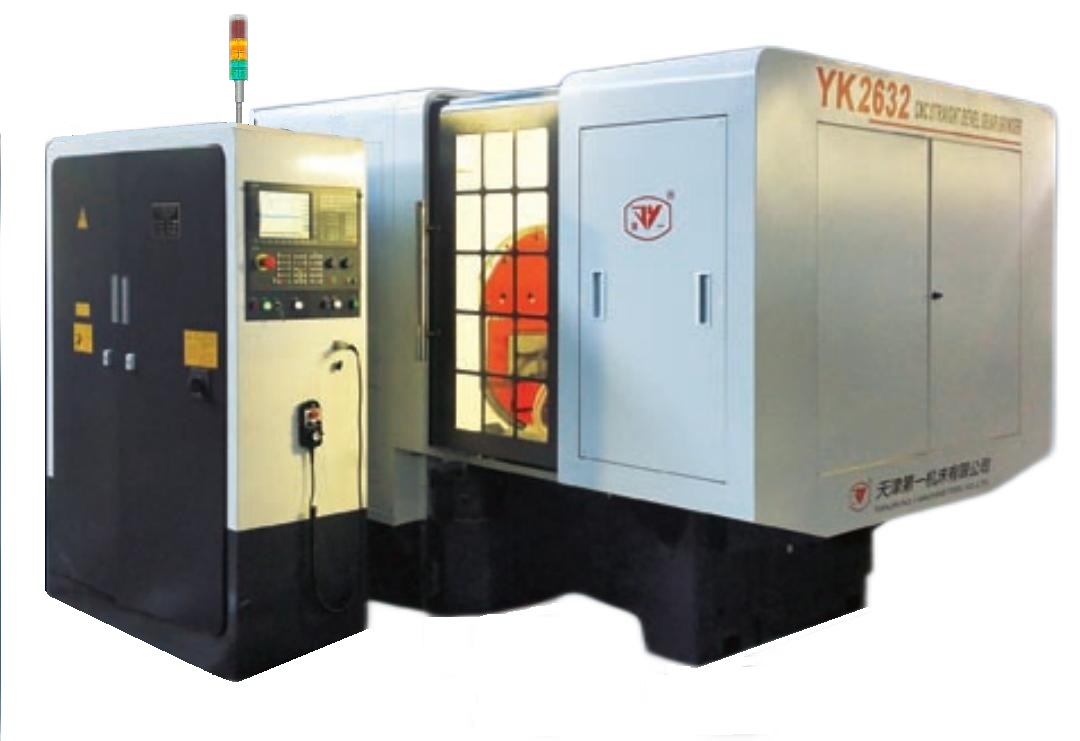

TMTW YK2632 manufacturer image
Whole original photograph from the exact YK2632 model page.

YK2632 is Tianjin First Machine Tool’s CNC straight bevel gear grinder. The manufacturer describes flank grinding for mass production with module 1.5–8 mm and a 320 mm diameter reference. However, the specification rows for 320 mm pitch diameter and 160 mm pitch-cone element length add a 30° spiral-angle condition, with 10:1 ratio also stated for diameter. Obtain a written capacity confirmation for the actual straight bevel gear rather than treating these as unconditional limits or inferred spiral-bevel capability.

The table lists root-cone angles 4–90°, maximum ratio 10:1 at 90° shaft angle, 18 mm maximum tooth depth and 50 mm face width. The workpiece mounts on an arbor and is hydraulically clamped. The spindle-end-to-centre distance is 60–360 mm, with 1:20 taper and Ø78 mm through bore. Send the full hub/shaft and cone drawing, datum and locating arrangement; headline diameter alone does not establish arbor, wheel or clamp clearance.

The listed Ø250 mm grinding wheel runs at a 3000 rpm reference with variable-frequency regulation. Two diamond styluses dress the profile and wheel circumference. The manufacturer describes processing one flank and rotating the cradle to process the other, with Siemens 828D controlling three simultaneous movements among five drive axes. Specify the complete two-flank sequence, wheel profile, dressing interval, coolant/filtration and the thermostatic oil tank described as special order. Automatic cycles exclude loading and unloading.

Catalog specifications

Process
Straight bevel gear flank grinding
Application module range
1.5–8 mm
Pitch diameter reference
320 mm; table states 30° spiral angle and 10:1 ratio, capacity to confirm
Pitch-cone element length
160 mm; table states 30° spiral angle, capacity to confirm
Root-cone angle
4–90°
Maximum ratio
10:1 at 90° shaft angle

The manufacturer’s GB5-or-better statement lacks the full standard edition and inspection conditions in this description. Agree the actual bevel-gear characteristics, gauges, thermal condition and accepted sample run instead of using it as a universal guarantee. The table lists 5.5 kW main motor, 25 kVA total requirement, 2800 × 2200 × 2200 mm body at 8000 kg and separate 1750 × 600 × 2000 mm cabinet. Obtain installed access and destination support. The whole matching original image visibly identifies YK2632.

Other TMTW rows

Additional specifications

Maximum tooth depth / face width
18 / 50 mm
Work-spindle end to centre
60–360 mm
Work-spindle taper / through bore
1:20 / Ø78 mm
Grinding wheel / speed
Ø250 mm / 3000 rpm with variable-frequency regulation
Control / motion
Siemens 828D; five drive axes, three simultaneous movements
Main motor / total requirement
5.5 kW / 25 kVA
Body / mass
2800 × 2200 × 2200 mm / 8000 kg
Separate electrical cabinet
1750 × 600 × 2000 mm

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
