World · Laser
World LD-3015S2

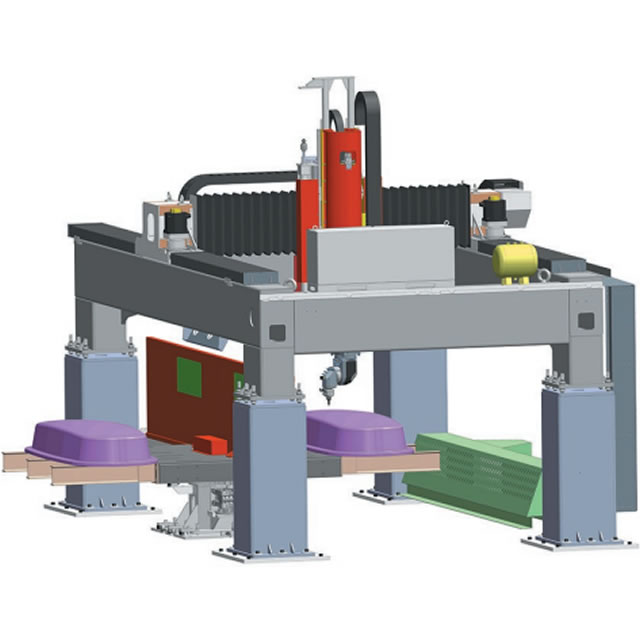

The manufacturer reference presents LD-3015S2 as a three-dimensional, five-axis laser-cutting machine for formed-part work. The retained whole manufacturer illustration shows a layout with shaped parts and fixtures; it does not establish supplied tooling, current available options or a delivered production result. Secure current product-page confirmation was blocked by the source site's expired certificate, so numerical build specifications remain unapproved here.
Show the formed shape, final datums, trim contours, hole directions, fixture/clamps, highest features and the complete cutting-head/nozzle assembly. Check loaded collision envelope and local approach/retract clearance through every required orientation. Linear travel and nominal rotary motion alone do not guarantee access to an inward-facing edge or variable formed parts. Agree actual controller/head, programming and post-processing responsibilities on one build schedule.
Trial representative formed parts using the intended locating and clamp scheme. Record part-to-part variation, interrupted-cycle recovery and any relocation; inspect trim edges and holes after release against the final part datums. A positioning row carrying speed units in archived material is not converted into an accuracy guarantee. Obtain corrected current specifications and actual build photos, define protective/integration documents and assign commissioning, operator training and destination service.
