Baoji Zhongcheng CK46P

Baoji Zhongcheng Precision CNC Equipment Co., Ltd. · Baoji

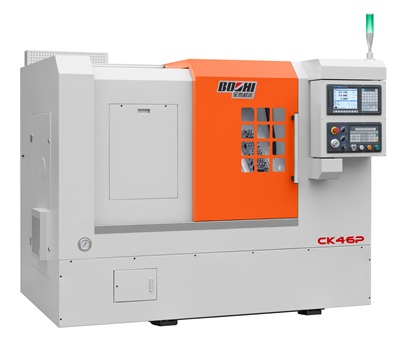

Baoji Zhongcheng CK46P manufacturer image
CK46P — manufacturer product image. Confirm the ordered enclosure and equipment.
  1. Swing over bed / carriage400 / 140 mm
  2. Maximum turning diameter360 mm
  3. Maximum turning length270 mm
  4. Bar capacity45 mm
  5. Spindle bore57 mm

Baoji Zhongcheng CK46P is a gang-tool CNC lathe with a 45-degree slant-bed arrangement. The product table lists a 45 mm bar capacity, an A2-5 spindle nose and a 57 mm spindle bore. The smaller usable bar figure should govern bar-feed planning; spindle-bore diameter alone does not establish the clearance through the collet and drawtube.

Maximum spindle speed is 4000 rpm with a 5.5/7.5 kW motor. The stated turning envelope is 360 mm diameter and 270 mm length, while X and Z travel are each listed at 400 mm. A T-slot gang plate with eight holders is described, using 20 × 20 mm external tools and a 25 mm boring-tool size.

The published control is GSK 988TA. Direct servo-driven ball screws, linear guides and automatic lubrication are described for the axis system, with side or rear chip removal. Provide bar stock, part length, tool sequence and cutoff needs through RFQ. Check holder interference and collet access, and confirm whether the desired automation is included in the supplied machine.

Is 57 mm the usable bar capacity?

No. The spindle bore is 57 mm, but the catalog gives 45 mm bar capacity. Confirm the collet, drawtube and feeder around that usable limit.

Additional specifications

Maximum spindle speed
4000 rpm
Spindle nose
A2-5
Spindle motor
5.5 / 7.5 kW
X / Z travel
400 / 400 mm
Rapid traverse X / Z
18 / 20 m/min
Tooling
T-slot gang plate, eight holders listed
Control
GSK 988TA
Machine dimensions
2150 × 1640 × 2025 mm
Machine weight
2800 kg

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
