Brother turning

Brother CAK6150

Shandong Brother CNC Machine Tool Co., Ltd. · Zaozhuang

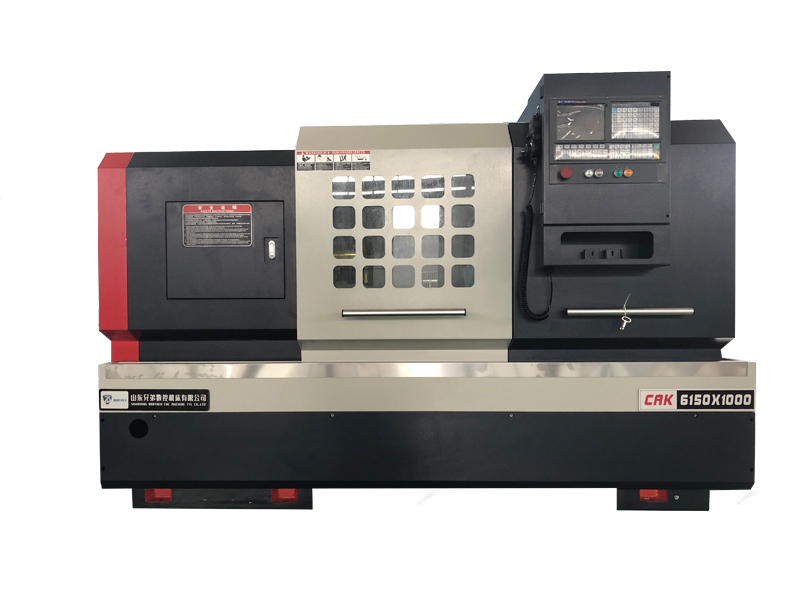

Brother CAK6150 manufacturer image
Whole original CAK6150-1000 image with visible matching marking. Basic/B/C spindle and control package remain build-specific.
  1. Bed swing500 mm
  2. Cross-slide swing280 mm
  3. Processing length reviewed build1000 mm
  4. Spindle bore base / B / C52 / 80 / 104 mm; distinct versions
  5. Internal spindle taper baseMT6

Shandong Xiongdi publishes CAK6150-1000 as a horizontal flat-bed CNC turning reference for outside/inside diameters, faces, grooves, tapers, arcs and threads. Its technical table combines basic, B and C spindle versions. Specify the exact suffix, length, drive and chuck package; the family designation does not make the largest bore or every optional control standard. The reviewed photograph is visibly marked CAK6150X1000.

The reviewed build lists 500 mm swing over the bed, 280 mm over the cross slide and 1000 mm processing length. These are separate limits. Check jaws, blank, toolholder and support through the actual path, and deduct chuck/centre projection from the proposed supported cut. Tailstock sleeve travel is 150 mm with MT5 taper, not the tailstock-body travel or full work length.

Base spindle bore is 52 mm and internal taper MT6; B lists 80 mm bore with Ø90 at 1:20, C 104 mm bore with Ø113 at 1:20. Do not combine the versions or treat bore as a supported bar-feed rating. The table lists a 7.5 kW spindle motor, manual three-range 21–1500 rpm speed package and optional automatic gear change. Obtain the delivered interface, chuck drawing and torque curve.

Confirm the actual control/drive, four- or six-station toolholder choice, chuck/tailstock actuation and threading functions. Run the intended disc or supported shaft with loading, gear changes, indexing, roughing, finishing and inspection included. Source table/prose repeatability figures differ; obtain the applicable machine test and inspect released drawing geometry under agreed conditions. The 1000-length packaging reference is 2750 × 1550 × 1700 mm; get defined net/shipping masses, foundation and destination commissioning documents.

Additional specifications

Internal spindle taper B / C
90 mm / 113 mm at 1:20; distinct versions
Spindle speed geared reference
21–1500 rpm; three ranges
Tailstock sleeve travel
150 mm
Tailstock sleeve taper
MT5
Rapid X / Z
4 / 6 m/min
Spindle motor
7.5 kW
1000-length packaging reference
2750 × 1550 × 1700 mm

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
