Chenghai GMC2016
Gantry · Tengzhou Chenghai Machine Tool Co., Ltd.
| X / Y / Z travel | 2100 / 1630 / 850 mm |
|---|---|
| Table size | 2200 × 1400 mm |
| Table load | 4000 kg |
| Clearance between columns | 1650 mm |
| Spindle nose to table | 150–1000 mm |
| Spindle interface | BT50 |

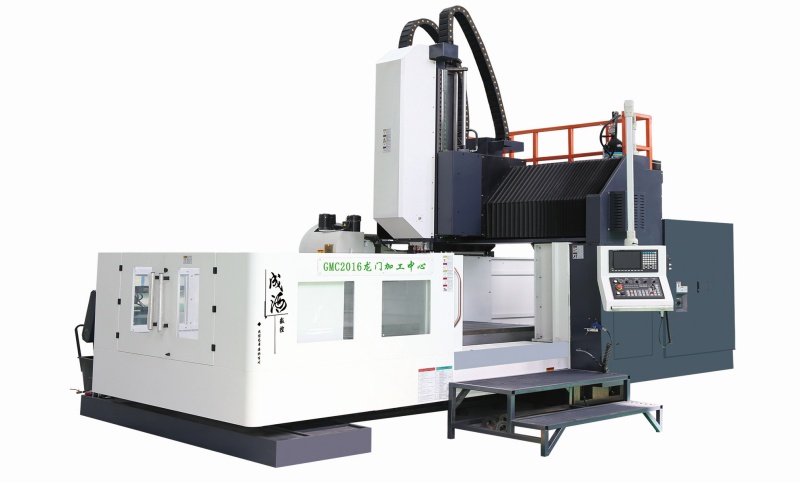

Chenghai GMC2016: manufacturer catalog image. Confirm the ordered configuration.
Chenghai GMC2016 is a gantry machining center with 2100 mm X travel and a 2200 × 1400 mm table. Its 4000 kg table-load rating and 1650 mm between-column clearance support evaluation of larger fixtures and workpieces. The part must fit the actual access envelope as well as the table.
The catalog specifies a BT50 belt-driven spindle rated at 6000 rpm with a 15/18.5 kW motor entry. X and Y rapid traverse are 15 m/min, and Z rapid traverse is 12 m/min. Mitsubishi M80B is the named control. The 24-tool magazine is expressly optional, so this page does not present automatic tool changing as included in every quotation.
The machine is listed at 17000 kg with dimensions of 6000 × 3800 × 4350 mm. Installation planning should therefore cover foundations, lifting access, overhead clearance and service space. Include the fixture height and longest tool in the review of the 150–1000 mm spindle-nose-to-table range.
Does GMC2016 include a 24-tool magazine as standard?
The reviewed table marks it as optional. Include the magazine and tool-changing requirements explicitly in the RFQ.
