Chenghai VMC855

3-axis machining · Tengzhou Chenghai Machine Tool Co., Ltd.

Catalog figures — see source review
X / Y / Z travel800 / 550 / 550 mm
Table size1000 × 550 mm
Table load800 kg
T-slots5 × 18 mm, 90 mm pitch
Spindle nose to table120–670 mm
Spindle center to column550 mm

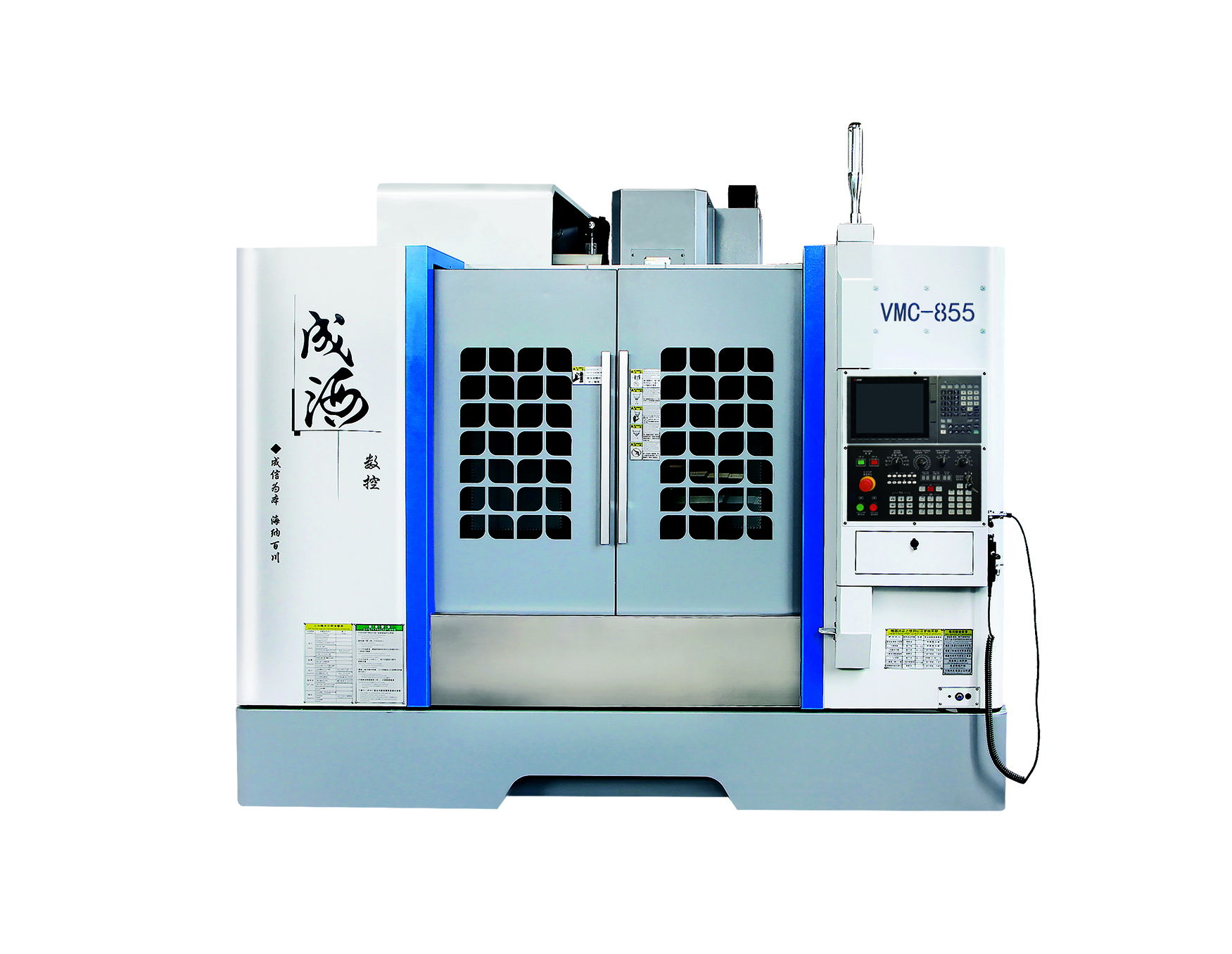

Chenghai VMC855 manufacturer image

Chenghai VMC855: manufacturer catalog image. Confirm the ordered configuration.

Chenghai VMC855 is a vertical machining center with 800 × 550 × 550 mm travels and an 800 kg table-load rating. Its 1000 × 550 mm worktable provides the mounting surface for fixtures and components. The table dimensions and travel values are different constraints and should both be checked when laying out a job.

The published configuration combines a BT40 spindle, a 7.5 kW spindle motor and a 24-tool magazine. The spindle range extends to 8000 rpm, with rapid traverse of 36 m/min on X and Y and 24 m/min on Z. The product page names KND2000 control; any alternative control or spindle package needs separate confirmation.

Tooling selection should account for the stated 6 kg maximum tool weight and 300 mm maximum tool length. The 120–670 mm spindle-nose-to-table range is particularly useful when checking a tall fixture, workpiece and tool assembly. Request a setup review with the intended toolholders and clamping equipment before finalizing the machine.

Is this the same specification as another brand’s VMC855?

No. VMC855 is used by multiple builders. The figures on this page belong specifically to the reviewed Chenghai product.

Same listing
GMC2016
GMC3020

Additional specifications

Spindle interface
BT40
Spindle speed
0–8000 rpm
Spindle motor
7.5 kW
Rapid traverse X / Y / Z
36 / 36 / 24 m/min
Cutting feed
10–10000 mm/min
Tool magazine
24 tools
Maximum tool weight
6 kg
Maximum tool length
300 mm
Control
KND2000

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
