Chenghai GMC3020

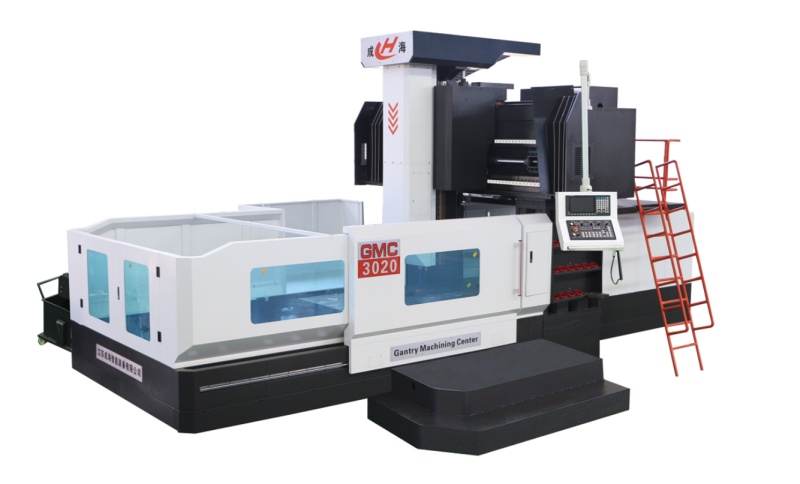

Chenghai GMC3020 manufacturer image
GMC3020 — manufacturer product image. Confirm the ordered enclosure and equipment.

Chenghai GMC3020 is a fixed-gantry machining center with a moving table for larger plates, molds and structural components. The 3000 × 1600 mm table carries up to 10000 kg, while the 2000 mm distance between columns governs lateral clearance. Its 3000 mm X travel and larger load rating make it a distinct capacity choice alongside the builder's smaller GMC2016.

The published configuration uses roller guides on all three linear axes and nitrogen counterbalancing on Z. A belt-driven BT50 spindle reaches 6000 rpm with a listed 22/26 kW motor. Spindle temperature control and auger-plus-chain chip removal are described for managing sustained cutting and chip accumulation.

A 24-tool arm magazine is optional, so automatic tool changing should be specified in the quotation rather than assumed. Provide a workpiece-and-fixture drawing, total mass and the tallest tool assembly through RFQ. Check the 200–1100 mm spindle-to-table range against fixture height, and reserve maintenance space beyond the published machine dimensions.

Catalog specifications

X / Y / Z travel
3000 / 2000 / 900 mm
Table size
3000 × 1600 mm
Table load
10000 kg
Distance between columns
2000 mm
Spindle nose to table
200–1100 mm
Spindle interface
BT50

Before you RFQ

Is the 24-tool magazine standard?

It is listed as optional. Confirm the magazine, tool envelope and control package in the equipment schedule.

Other Chenghai rows

Additional specifications

Maximum spindle speed
6000 rpm
Spindle motor
22 / 26 kW
Rapid traverse X / Y / Z
10 / 10 / 8 m/min
Tool magazine
24-tool arm type, optional
Machine dimensions
7500 × 4600 × 4600 mm
Machine weight
26000 kg

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
