Chenguang CGK-1500

Grinding · Jiangsu Chenguang CNC Machine Tool Co., Ltd.

Catalog figures — see source review
Maximum grinding diameter, disc-type work360 mm
Maximum diameter with steady rest160 mm
Minimum grinding diameter12 mm; 6 mm by special order
Maximum center distance1600 mm
Maximum thread-grinding length1500 mm
Center height210 mm

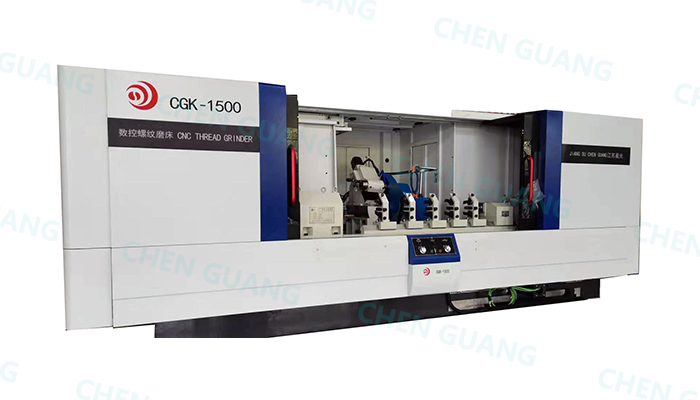

Chenguang CGK-1500 manufacturer image

Official CGK-1500 thread-grinder image; brand watermarks contain no contact details.

Chenguang CGK-1500 is a CNC thread grinder for ball-screw, trapezoidal and other threaded profiles. It offers a maximum grindable thread length of 1500 mm within a 1600 mm center distance. Center height is 210 mm, and the minimum listed grinding diameter is 12 mm, with 6 mm available by special order.

The diameter limits depend on support and workpiece type: the catalog gives 360 mm for disc-type work and 160 mm when using a steady rest. Metric pitch ranges from 1.5 to 48 mm, with up to 99 starts and a maximum helix angle of ±25 degrees. These limits need to be evaluated together for the proposed thread.

The wheel spindle runs at 1000–3000 rpm, while workpiece rotation is separately listed at 0–150 rpm. The product description names Siemens 828D or 840D control, linear-scale feedback and compensation functions for pitch, taper and dressing. Agree on the wheel profile, support arrangement, measurement method and acceptance test for the finished screw.

Is 1600 mm the maximum grindable thread length?

No. It is the center distance. The separately specified maximum thread-grinding length is 1500 mm.

Same listing
CGK-401

Additional specifications

Metric thread pitch
1.5–48 mm
Maximum helix angle
±25°
Thread starts
1–99
Workpiece speed
0–150 rpm
Table speed
0–5 m/min
Wheelhead transverse travel
220 mm
Wheel spindle speed
1000–3000 rpm
Wheel outside / bore diameter
500 / 305 mm
Machine dimensions
6000 × 2200 × 2100 mm
Machine weight
12000 kg
Control choices
Siemens 828D or 840D

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
