Dahe DHK1160
Grinding · Ningxia Yinchuan Dahe CNC Machine Tool Co., Ltd.
| Process | Vertical CNC honing |
|---|---|
| Table size | 1200 × 600 mm |
| X / Y / Z travel | 1100 / 600 / 600 mm |
| Maximum spindle-head travel | 600 mm |
| Rapid traverse X / Y / Z | 24 / 24 / 24 m/min |
| Maximum spindle speed | 8000 rpm |
RFQ plant Ningxia Yinchuan Dahe CNC Machine Tool Co., Ltd.
- Lead time
- On RFQ
- MOQ
- Confirm with supplier
- Grade
- Catalog listing

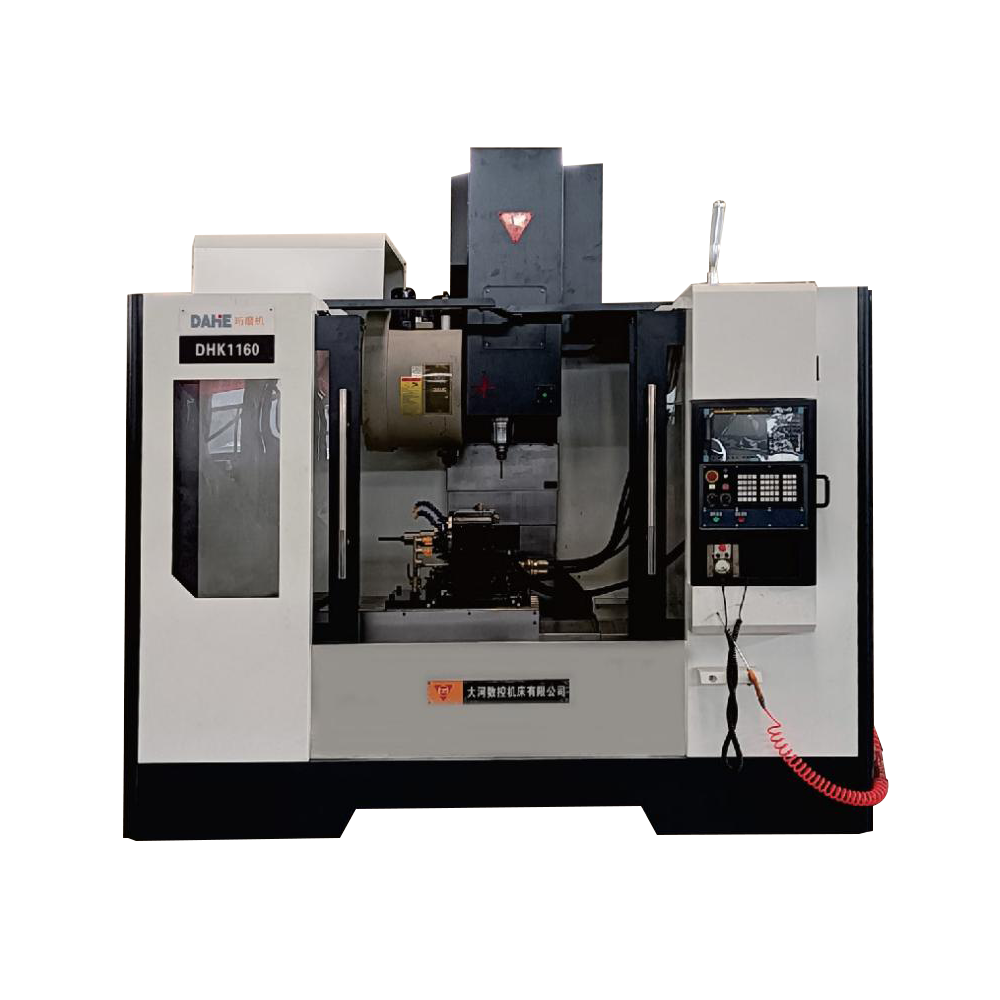

The Dahe DHK1160 is a vertical CNC honing machine. Its spindle moves vertically, while the work table provides horizontal positioning in two directions. The machine adds a floating table for small-hole honing; when released, that table can move within the horizontal plane to compensate for positioning differences between the tool and workpiece.
A CNC indexing table is mounted on the floating arrangement. The published indexing increment is 0.001 degree across a full revolution. Linear travels are 1100 × 600 × 600 mm, with a 1200 × 600 mm work table and a quoted 24 m/min rapid traverse. These dimensions describe the machine envelope, not the range of bore sizes that can be honed.
The stated control is FANUC 0i-MF Plus. Direct-coupled servo drives, ball screws and linear guides serve the three linear axes. For a production proposal, provide the bore drawing, material, incoming condition, required roundness and surface texture, together with fixture and measurement requirements. Confirm honing-tool compatibility and the acceptance method before selecting a configuration.
What bore diameter can this machine hone?
The reviewed product page does not specify a bore-diameter range. It must be confirmed with the proposed tool, workpiece and fixture; table travel is not a bore-capacity rating.
