Daqun M640-L2

milling · Guangdong Daqun CNC Machine Tool Co., Ltd.

Catalog figures — see source review
X / Y / Z travel400 / 400 / 200 mm
Spindle center spacing365 mm
Table size600 × 400 mm
Table load100 kg
Rapid traverse18 m/min
Cutting feed6 m/min

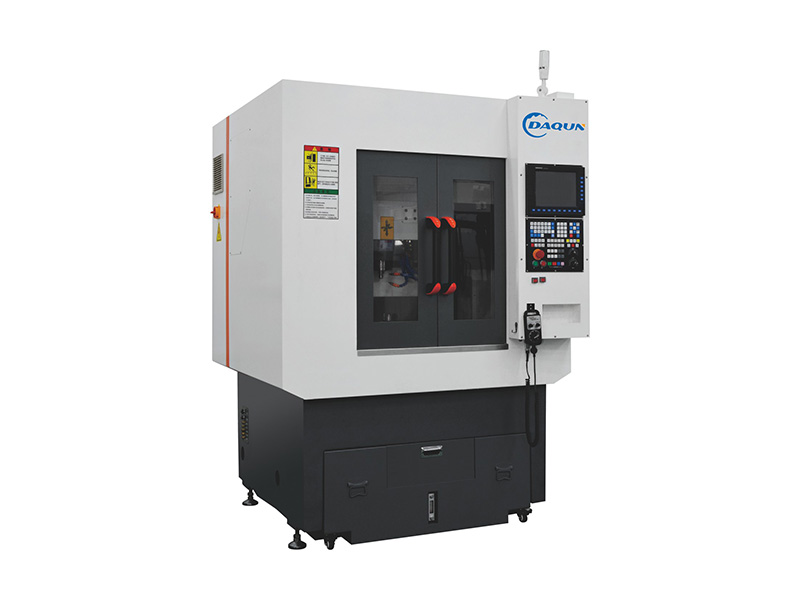

Daqun M640-L2 manufacturer image

M640-L2 — manufacturer product image. Confirm the ordered enclosure and equipment.

Daqun M640-L2 is a two-spindle machining model with 365 mm between spindle centers. Each production setup must respect that spacing as well as the published 400/400/200 mm axis travels. The 600 × 400 mm table and 100 kg load rating suit compact fixtures; neither number establishes the maximum size of two parts processed simultaneously.

The manufacturer describes a natural-marble and cast structural arrangement, ceramic-bearing spindles, linear guides and ball screws. Its specification offers several spindle-speed and tool-interface combinations. The listed 36000, 40000 and 60000 rpm choices must be matched to the actual spindle and toolholder package instead of being treated as three settings on every machine.

Magazine configurations are split between the two spindles: 16 tools means eight for each head, while 20 means ten each. Supply paired fixture layouts, tool reach, material and cycle requirements through RFQ. Confirm whether the two parts use identical operations, the selected control and spindle power, coolant compatibility and the available 200 mm vertical travel.

Does a 20-tool magazine give each spindle 20 tools?

No. The listed 20-tool arrangement is divided into ten tools for each spindle.

Same listing
S650-C

Additional specifications

Spindle speed choices
36000 / 40000 / 60000 rpm
Tool magazine choices
16 tools (8 per spindle) or 20 tools (10 per spindle)
Tool interfaces offered
ISO25 / ISO20 / T11; configuration dependent
Compressed air
0.5–0.65 MPa
Machine dimensions
1732 × 1576 × 2198 mm
Machine weight
1900 kg

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
