Daqun · 3-axis machining

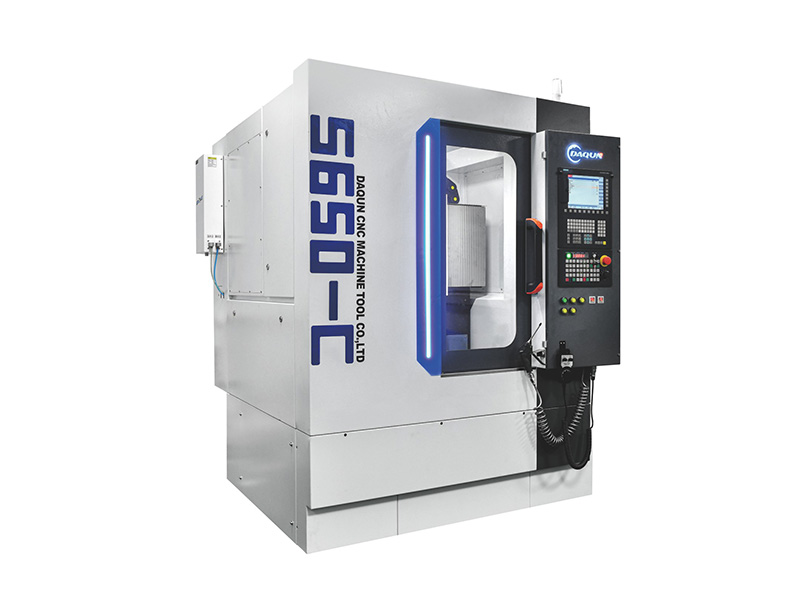

Daqun S650-C
Daqun S650-C is a precision machining center with a mineral-cast structure and 500 × 400 × 250 mm travels. The manufacturer identifies graphite electrodes, graphite fixtures, optical molds, precision copper electrodes and engineering ceramics as application areas. Its 600 × 500 mm table has a 100 kg load rating in the S650-C column.
The published configuration offers several spindle speeds, motor powers and HSK-E interfaces. These are choices rather than a single combined specification: the selected spindle, toolholder and power rating must be confirmed together. The same applies to the 12- or 16-station servo-disc magazine and Siemens, FANUC or Mitsubishi control choices.
The source names SMC pneumatic components and Heidenhain linear scales. For process planning, the S650-C rapid traverse is 24 m/min; the 90 m/min value on the shared comparison table belongs to Z650-C and is not used here. Discuss dust management or coolant strategy for the actual material, along with tool runout, workholding and part-level acceptance tests.
Catalog specifications
- X / Y / Z travel
- 500 / 400 / 250 mm
- Table size
- 600 × 500 mm
- Table load
- 100 kg
- Rapid traverse
- 24 m/min
- Maximum cutting feed
- 10 m/min
- Spindle speed choices
- 32000 / 36000 / 40000 rpm
Before you RFQ
Does S650-C have the 90 m/min rapid speed shown in the comparison?
No. The reviewed table assigns 24 m/min to S650-C and 90 m/min to Z650-C.
