Dekay FA-UM800

Ningbo Dekay CNC Machine Tool Co., Ltd.

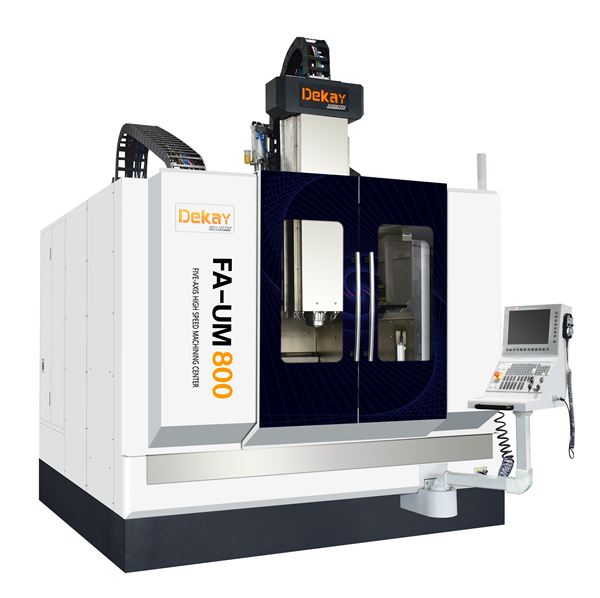

FA-UM800 — manufacturer product image. Confirm the ordered enclosure and equipment.

  1. X / Y / Z travel: 850 / 1000 / 600 mm
  2. Spindle nose to table: 180–780 mm
  3. Rotary-table diameter: 800 mm

Dekay FA-UM800 combines five-axis machining with an ultrasonic tool system. Its overhead moving structure carries the X, Y and Z linear axes, while an A/C cradle supports the workpiece. The model table lists 850/1000/600 mm linear travel, an 800 mm rotary table and a 1200 kg table-load rating.

The A axis travels through ±120 degrees and C permits continuous rotation. A 30 kW electric spindle reaches 18000 rpm with an HSK-A63 interface and a listed torque of 105 N·m. The ultrasonic system combines a generator, dedicated toolholder and transmission module, operating at 28 ±0.3 kHz with a stated output of at least 50 W.

A 32-tool chain magazine and the specified CNC package are listed as options. Ultrasonic machining requires compatible tooling and a material-specific process; ordinary tools should not be assumed to provide that function. Submit material, surface geometry, fixture mass and tool-access requirements through RFQ. Confirm the rotary load condition, holder selection and trial-cut acceptance before planning simultaneous machining around the complete part.

Catalog specifications

X / Y / Z travel
850 / 1000 / 600 mm
Spindle nose to table
180–780 mm
Rotary-table diameter
800 mm
Table load
1200 kg
A-axis range
±120°
C-axis motion
Continuous rotation

Does any HSK-A63 tool automatically support ultrasonic machining?

No. The ultrasonic function requires the compatible holder, generator and transmission arrangement described for the machine.

Related catalog records

Additional specifications

Maximum spindle speed
18000 rpm
Spindle motor
30 kW
Spindle torque
105 N·m
Tool interface
HSK-A63
Ultrasonic frequency
28 ±0.3 kHz
Ultrasonic output
At least 50 W, manufacturer rating
Optional tool magazine
32-tool chain type
Machine weight
17500 kg

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
