Dekay · 3-axis machining

Dekay V855

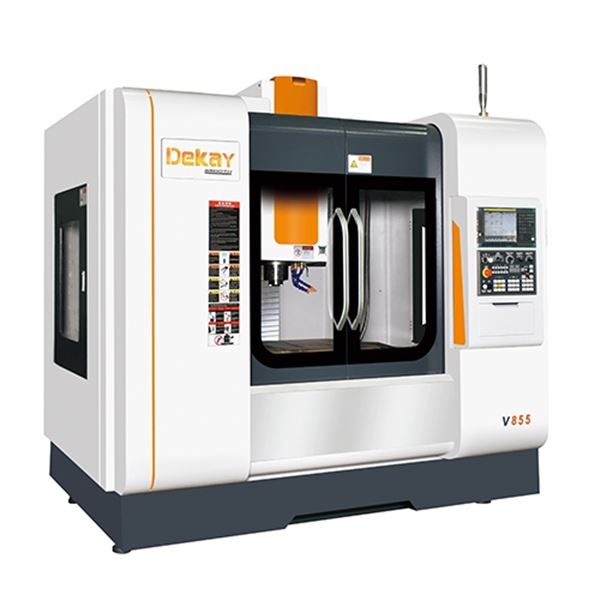

Dekay V855 manufacturer image
Dekay V855: manufacturer catalog image. Confirm the ordered configuration.

Dekay V855 is a vertical machining center for plate, disc, housing and mold work. The product description lists milling, drilling, reaming, boring and tapping within one clamping setup, subject to the access required by the individual part. Its published travels are 800 × 550 × 550 mm, with a 500 kg worktable-load limit.

The reviewed brochure pairs an 8000 rpm BT40 spindle with a 24-tool magazine and Mitsubishi M80B control. All three linear axes have a listed rapid traverse of 48 m/min. These are positioning speeds; the listed cutting-feed rate is 10 m/min and should not be confused with the rapid value.

The brochure separates the standard spindle from optional direct-drive and built-in high-speed packages. It also lists a fourth-axis rotary table, probing, tool setting and coolant-through-spindle as options. Confirm those items for the intended material and workholding arrangement; their presence in an options list does not establish inclusion on the pictured machine.

Catalog specifications

X / Y / Z travel
800 / 550 / 550 mm
Table size
1000 × 550 mm
Table load
500 kg
Spindle nose to table
120–670 mm
Spindle center to column
595 mm
Spindle interface
BT40

Before you RFQ

Are the higher spindle speeds standard?

No. The reviewed base table specifies 8000 rpm; higher-speed spindle packages appear in the options list.

Other Dekay rows

Additional specifications

Spindle speed
8000 rpm
Spindle motor
7.5 kW
Rapid traverse X / Y / Z
48 / 48 / 48 m/min
Cutting feed
10 m/min
Tool magazine
24 tools
Standard control
Mitsubishi M80B
Optional control
FANUC 0i-MF
Machine dimensions
2600 × 2500 × 2700 mm
Machine weight
5000 kg

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
