DMNC · Electrical discharge machining

DMNC 45S+PRO

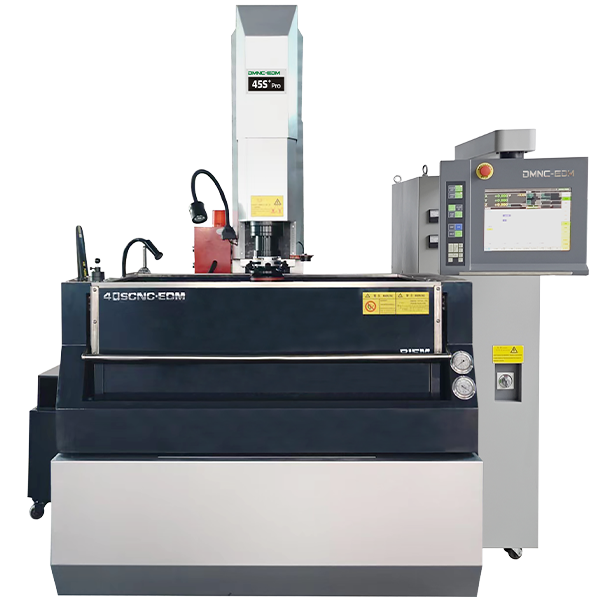

DMNC 45S+PRO manufacturer image
DMNC 45S+PRO: manufacturer catalog image. Confirm the ordered configuration.

DMNC 45S+PRO is a CNC die-sinking EDM machine with 450 × 300 × 320 mm linear travels and a 700 × 400 mm worktable. Its maximum workpiece load is 400 kg, while the electrode limit is 25 kg. These limits should include the relevant holders and fixtures in a setup assessment.

The Pro-series construction uses a T-shaped bed and a cross-table arrangement, with the table moving within the supporting casting. The manufacturer describes a granite worktable, precision linear guides and ground ball screws. The specification identifies three-axis simultaneous control, a 15-inch display and a 50 A maximum machining current.

The working tank measures 1200 × 680 × 440 mm internally and opens by manual pull-down. Maximum liquid level is 290 mm, so tank height alone is not the available immersion depth. Provide the electrode stack, workpiece height, cavity geometry and finish target in the RFQ, and request a process trial appropriate to the actual material and electrode.

Catalog specifications

X / Y / Z travel
450 / 300 / 320 mm
Table size
700 × 400 mm
Maximum workpiece weight
400 kg
Maximum electrode weight
25 kg
Table to ram lower plate, catalog dimension
585 mm
Tank internal dimensions
1200 × 680 × 440 mm

Before you RFQ

Can the full 440 mm tank height be used as fluid depth?

No. The published maximum liquid level is 290 mm. Workpiece, fixture and electrode immersion must be checked separately.

Other DMNC rows

Additional specifications

Maximum liquid level
290 mm
Tank opening
Manual pull-down
Dielectric tank capacity
590 L
Maximum machining current
50 A
Controlled motion
3-axis simultaneous
Display
15-inch TFT-LCD
Machine weight
2600 kg
Machine dimensions
2560 × 2300 × 2306 mm
Manufacturer best-case figures
Ra ≤0.2 μm; electrode wear ≤0.1%; removal ≥500 mm³/min; conditions not stated

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
