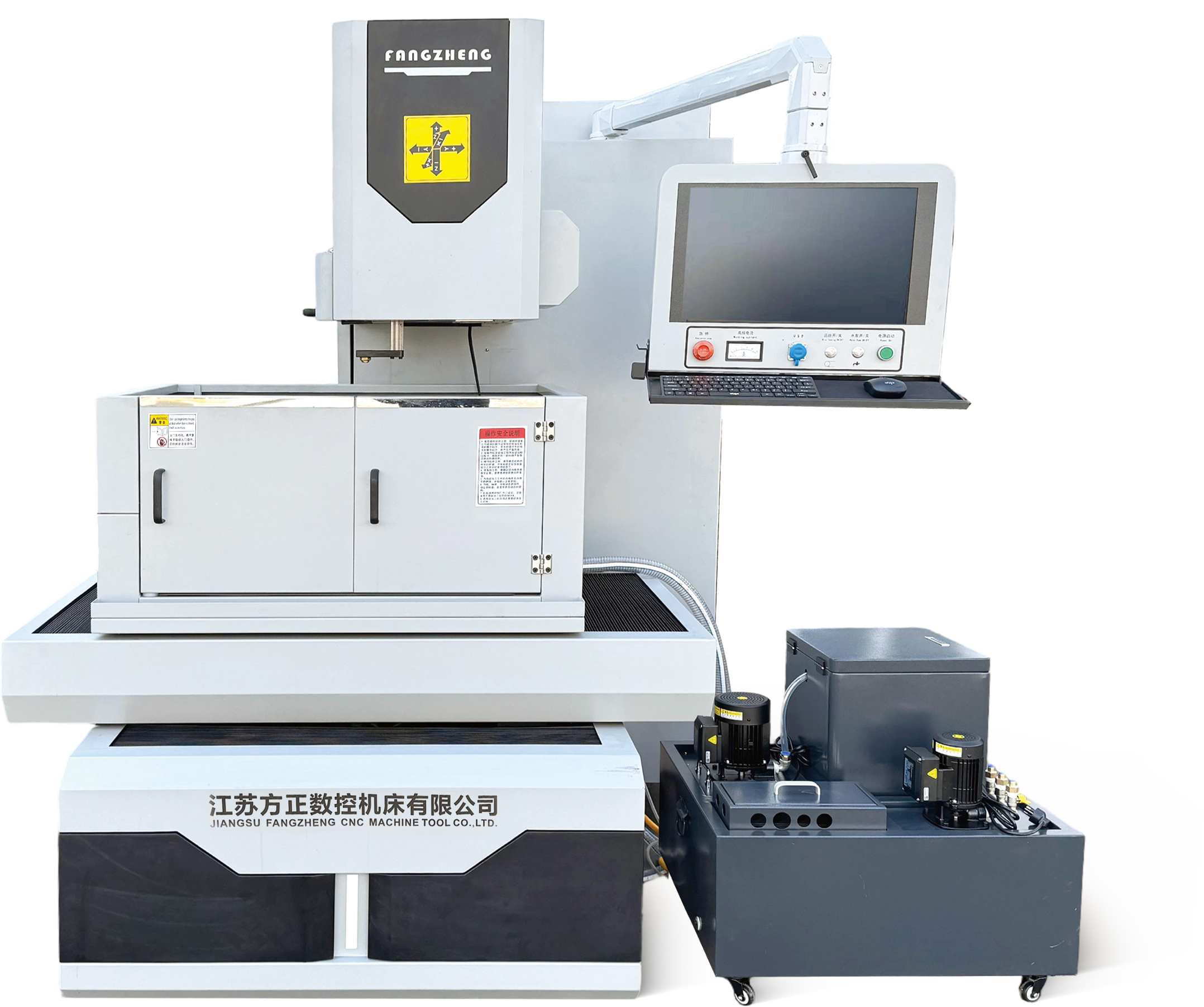

Fangzheng DK7732C-SF
Electrical discharge machining · Jiangsu Fangzheng CNC Machine Tool Co., Ltd.
| Table size | 500 × 720 mm |
|---|---|
| Table travel | 320 × 400 mm |
| Maximum machining thickness | 300 mm |
| Maximum workpiece weight | 450 kg |
| Maximum cutting taper | ±6° at 50 mm reference thickness |
| X / Y drive | Servo drive |
RFQ plant Jiangsu Fangzheng CNC Machine Tool Co., Ltd.
- Lead time
- On RFQ
- MOQ
- Confirm with supplier
- Grade
- Catalog listing
Fangzheng DK7732C-SF is a wire electrical-discharge machining machine for conductive workpieces such as die components, profiles and narrow slots. The model-specific table lists 320 × 400 mm travel, a 500 × 720 mm table, 300 mm maximum machining thickness and a 450 kg maximum workpiece weight.
X and Y are servo-driven in the SF specification. The C-series description includes linear guides, ball screws, automatic lubrication and a circulating fluid system with filtration. It describes multi-pass cutting as a way to refine the surface after the initial cut. The published taper limit is ±6 degrees at a 50 mm reference thickness; it should not be extended to every workpiece height.
The catalog gives a best surface roughness of Ra 1.0 µm or better and a maximum single-straight-cut efficiency of 200 mm²/min. Actual results depend on material, thickness, geometry, wire and cutting conditions. Submit a representative drawing and specify the required finish, tolerance, pass strategy and inspection method before agreeing a production cycle or acceptance test.
Is the published cutting efficiency a guaranteed cycle rate?
No. It is a catalog figure for a single straight cut. Material, thickness, corners and finishing passes change the overall cycle; request a sample-based estimate.
