FINCM ADM2532

CNC drilling · Shandong FIN CNC Machine Co., Ltd.

Catalog figures — see source review
ProcessCNC angle-steel drilling and marking
Minimum angle section90 × 90 × 6 mm
Maximum angle section250 × 250 × 32 mm
Drilling spindles3 on each side
Maximum drilling diameter26 mm
Spindle-speed range0–6000 rpm

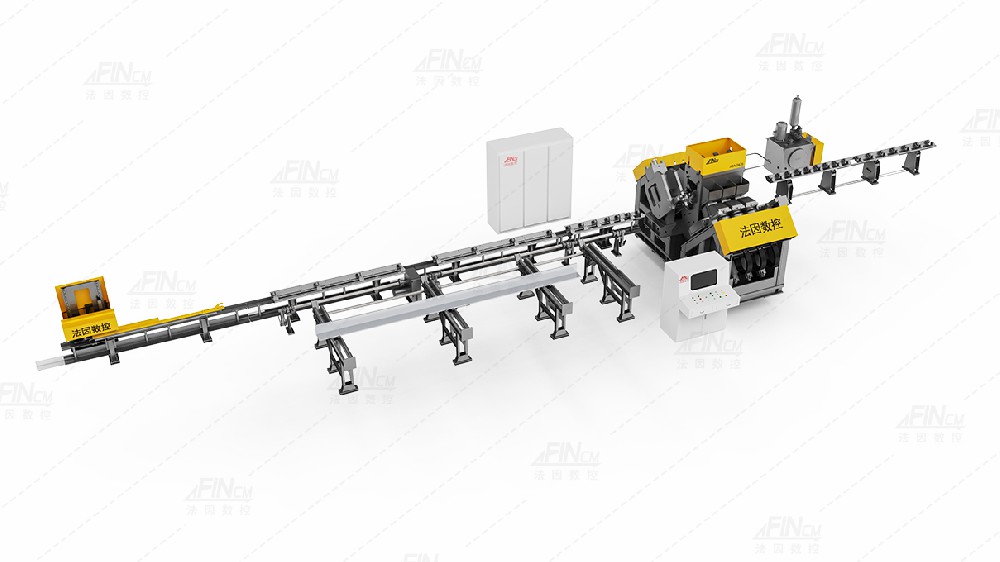

FINCM ADM2532 manufacturer image

ADM2532 — manufacturer product image. Confirm the ordered enclosure and equipment.

FINCM ADM2532 is a CNC production line for drilling and marking angle steel. Its published section range starts at 90 × 90 × 6 mm and extends to 250 × 250 × 32 mm. The two angle legs are served by three drilling spindles on each side, allowing a tool arrangement suited to repeated hole patterns.

The model table lists a maximum drilling diameter of 26 mm, a spindle range up to 6000 rpm and an 11 kW spindle motor. Marking-force choices are 1200 and 1500 kN; the quotation should identify the supplied arrangement. Marking and drilling requirements should be specified independently, including character content and the position of holes relative to the section edges.

Shearing is optional and has its own smaller section limits. The double-edge choice is listed up to 200 × 200 × 24 mm, while the single-blade choice reaches 200 × 200 × 20 mm. Do not assume that the maximum drillable angle can also be sheared. Provide stock lengths, material grade, hole schedule and downstream handling requirements through RFQ.

Can the largest drillable angle also be sheared?

Not under the listed optional shearing limits. Each shearing configuration has a smaller maximum section than the drilling range.

Same listing
BDM3040/3

Additional specifications

Spindle motor
11 kW
Marking-force choices
1200 / 1500 kN; confirm configuration
Optional double-edge shearing capacity
Up to 200 × 200 × 24 mm
Optional single-blade shearing capacity
Up to 200 × 200 × 20 mm

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
