FINCM BDM3040/3

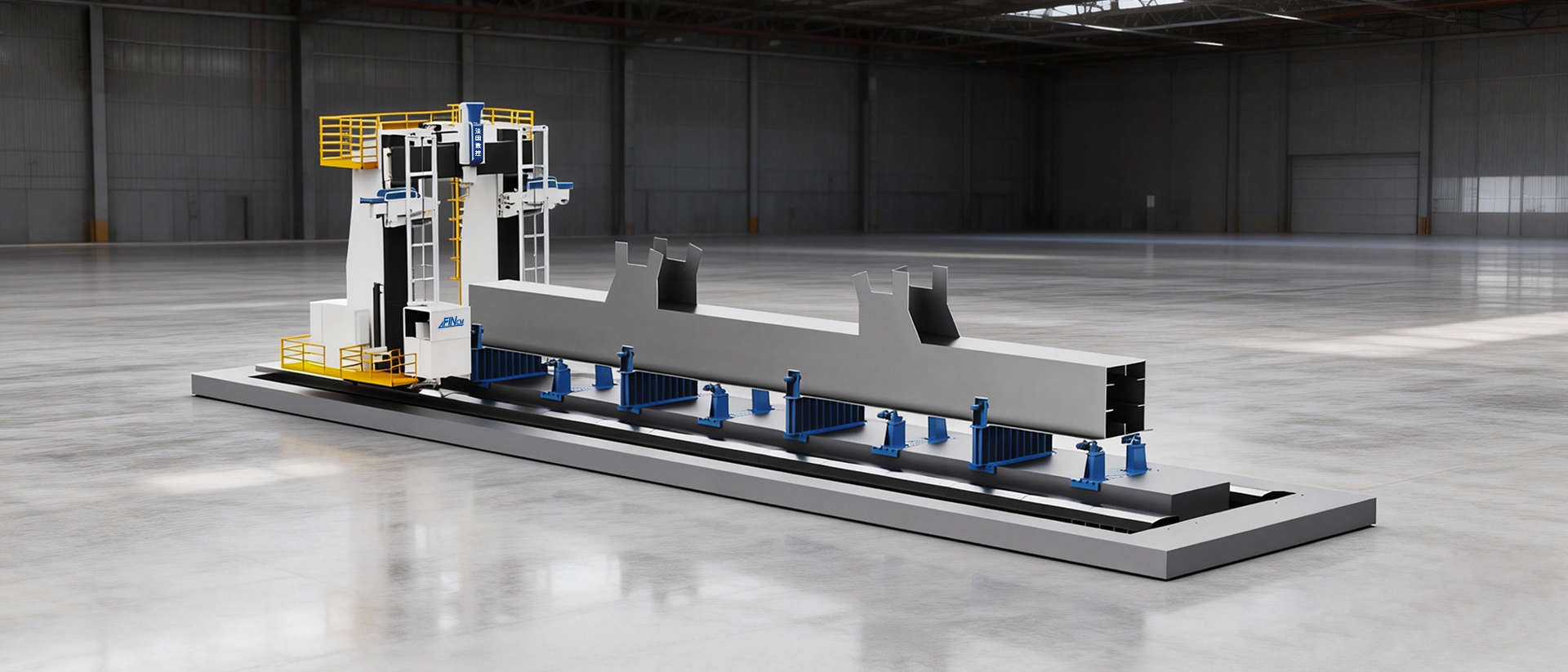

FINCM BDM3040/3 manufacturer image
Manufacturer BDM-series illustration; the delivered layout and workpiece-handling package depend on the selected configuration.

FINCM BDM3040/3 is a gantry drilling machine for large bridge steel structures. The manufacturer describes high-speed drilling on three sides, using three drilling power heads. The published workpiece range for this variant is 32000 mm in length, 800–2400 mm in width and 4000 mm in height; length can be customized by agreement.

The BDM table lists a maximum drilling diameter of 50 mm and 14 CNC axes. These are the overall machine’s controlled axes, not a claim of 14-axis simultaneous cutting. The product description also lists CAD/CAM automatic conversion, which should be checked against the customer’s drawing formats and fabrication data.

The shared series table includes BDM3046/3 and BDM4035/3, but their height and width entries are not substituted for BDM3040/3 here. For a real project, supply the longest and widest welded members, hole patterns, datum strategy and loading plan. Request confirmation of head access, clamping, chip handling and the configured spindle package, which are not quantified in the reviewed table.

Catalog specifications

Machine structure
Gantry
Workpiece length
32000 mm, customizable
Workpiece width
800–2400 mm
Workpiece height
4000 mm
Drilling heads
3
Maximum drilling diameter
50 mm

Before you RFQ

Are spindle rpm and motor power confirmed here?

The reviewed BDM table does not state those figures. They must be confirmed for the proposed head and tooling configuration.

Other FINCM rows

Additional specifications

CNC axes
14
Processing arrangement
Three-sided drilling
Programming function
CAD/CAM automatic conversion

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
