GROB G350

GROB Machine Tools (China) Co., Ltd.

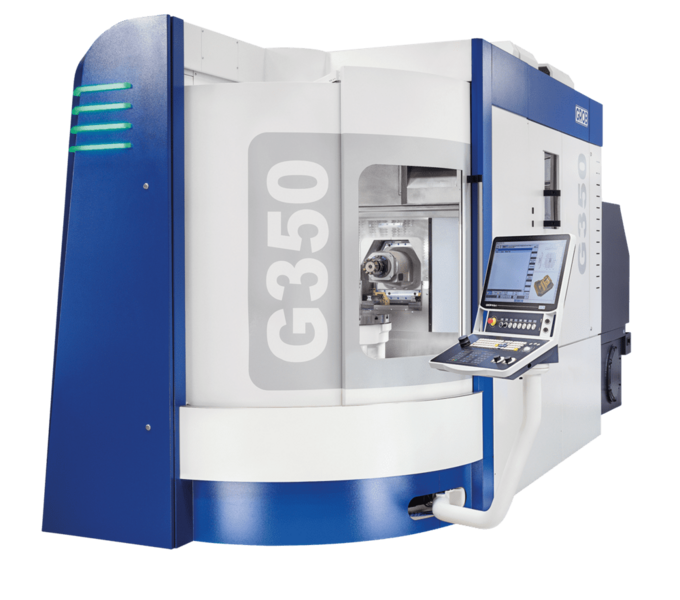

Whole matching original G350 model image; selected build to agree.

G350 is GROB’s horizontal-spindle five-axis universal milling centre. Its exact published travels are 600 × 855 × 750 mm with 720 mm interference diameter and 570 mm table diameter. Those are different limits: the complete mounted part, clamps and holder must remain clear through the intended A/B motion. The horizontal spindle and tunnel arrangement aid access and chip fall, but do not prove every long-tool setup collision-free.

The exact technical panel lists 400 kg table load without a pallet and 340 kg with one. Include the complete mounted load according to the supplier’s definition and obtain permitted centre of gravity. The A-axis swivel range is 230° and B-axis range 360°. Specify indexed or simultaneous machining from the acceptance features rather than assuming five-axis motion is necessary for every face. This milling reference does not inherit G350T’s turning-table speed or load limits.

The standard spindle is HSK-A63, 12,000 rpm and 83 Nm. Separate published alternatives are 16,000 rpm/206 Nm, 18,000/47, 21,000/47 and 30,000/63. Request the selected torque/duty and tool interface instead of combining the highest values. Single-disc tool length is 365 mm; double-disc limits are 365/180/550 mm for bottom/top/over both discs. Obtain the occupied-tool layout and remaining capacity for long or large assemblies.

The panel lists 70/45/90 m/min maximum linear speeds, 2.7 s speed-dependent chip-to-chip reference under VDI 2852 and 0.006 mm linear positioning reference. These are not a complete-cycle or finished-part guarantee. Trial related faces, the difficult pocket and datum transfer with the actual fixture and inspection method. Mass is 15,300 kg without or 17,500 kg with a pallet changer; automation, control, manufacturing origin and installed layout require a selected-build agreement. The exact whole original image is marked G350.

Catalog specifications

X / Y / Z travel
600 / 855 / 750 mm
Linear maximum speeds
70 / 45 / 90 m/min
Interference diameter
720 mm
Table diameter
570 mm
Table load without / with pallet
400 / 340 kg
A / B rotary range
230° / 360°

Related catalog records

Additional specifications

Standard spindle
HSK-A63 / 12,000 rpm / 83 Nm
Alternative spindle packages
16,000 rpm / 206 Nm; 18,000 / 47; 21,000 / 47; 30,000 / 63; separate choices
Single-disc tool length
365 mm / HSK-A63
Double-disc tool length
365 / 180 / 550 mm bottom / top / over both discs
Chip-to-chip reference
2.7 s under VDI 2852, speed-dependent; not full cycle
Linear positioning reference
0.006 mm X/Y/Z; not finished-part tolerance
Mass without / with pallet changer
15,300 / 17,500 kg

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
