Guangdong Yiji GMC2016
Gantry · Guangdong Yiji CNC Machine Tool Co., Ltd.
| X / Y / Z travel | 2000 / 1600 / 800 mm |
|---|---|
| Table size | 2000 × 1300 mm |
| Table load | 5000 kg |
| Gantry width | 1660 mm |
| Spindle nose to table | 200–1000 mm |
| Spindle interface | BT50, belt drive |
RFQ plant Guangdong Yiji CNC Machine Tool Co., Ltd.
- Lead time
- On RFQ
- MOQ
- Confirm with supplier
- Grade
- Catalog listing

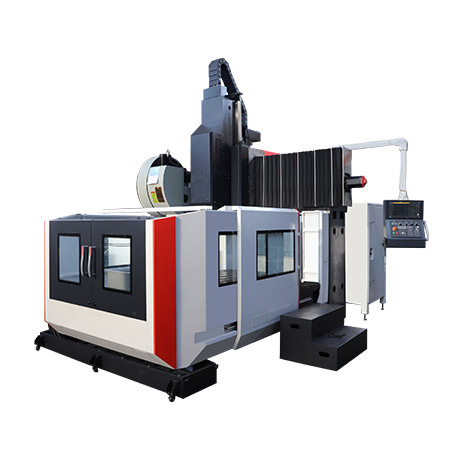

Guangdong Yiji GMC2016 is a gantry machining center with 2000 mm X travel, a 2000 × 1300 mm worktable and a five-tonne table-load rating. The shared family table lists multiple lengths; this page uses the first values corresponding to GMC2016 rather than the longer GMC3016 or GMC4016.
Y and Z travels are 1600 and 800 mm, while gantry width is 1660 mm. A belt-driven BT50 spindle reaches 6000 rpm with a 15/18.5 kW motor. The axis system uses linear guides, with rapid traverse of 12/12/10 m/min and a listed cutting-feed value of 5000 mm/min.
Automatic tool changing is optional, with disc or chain arrangements and 24- or 40-tool capacities offered. The maximum listed tool length is 300 mm and tool weight is 18 kg. Supply workpiece dimensions, fixture height and machining faces through RFQ. Confirm the selected magazine, control and permissible load distribution. The approximate machine weight is 20 tonnes, which should be included in foundation and handling planning.
Do the larger table lengths apply to GMC2016?
No. The shared table covers GMC2016, GMC3016 and GMC4016. This listing uses the 2000 mm length and five-tonne load values for GMC2016.
