Guangdong Yiji VMC850

3-axis machining · Guangdong Yiji CNC Machine Tool Co., Ltd.

Catalog figures — see source review
X / Y / Z travel800 / 500 / 500 mm
Table size1000 × 500 mm
Maximum table load700 kg
Spindle nose to table150–650 mm
Spindle center to column guide586 mm
Spindle motor7.5 kW

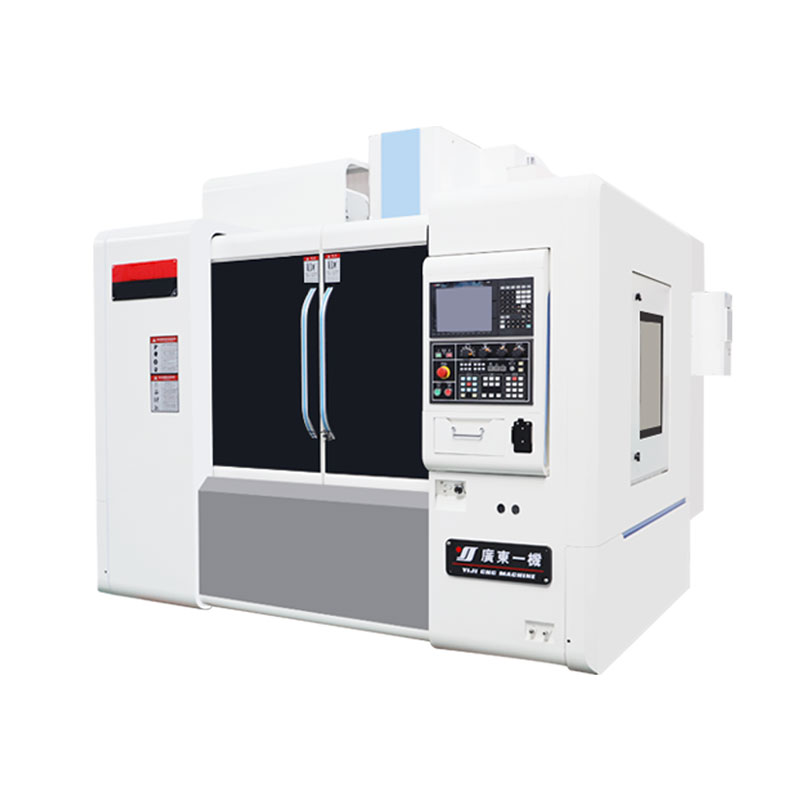

Guangdong Yiji VMC850 manufacturer image

Guangdong Yiji VMC850: manufacturer catalog image. Confirm the ordered configuration.

The Guangdong Yiji VMC850 is a three-axis vertical machining center with 800 mm X travel and 500 mm travel in both Y and Z. A 1000 × 500 mm table provides five T-slots and a stated 700 kg load rating. Include fixtures and other carried equipment when checking that limit.

The reviewed configuration uses an 8000 rpm spindle with a 7.5 kW motor and a published BT40-150 interface designation. X and Y run on roller linear guides, while the Z axis uses a lined box guideway. Rapid traverse is 32 m/min in X and Y and 18 m/min in Z, which should not be confused with the separate cutting-feed range.

Syntec 22MA control is named in the parameter sheet. Spindle-nose clearance ranges from 150 to 650 mm above the table. Before placing an RFQ, check the complete tool and fixture stack, the chosen tool-changing arrangement, workpiece material and available electrical supply. Request configuration-specific acceptance data for the required machining operation rather than treating catalog positioning figures as finished-part tolerances.

Is a tool magazine specified?

The reviewed model parameter sheet does not clearly establish magazine capacity. Request the tool-changing package and capacity explicitly in the quotation.

Same listing
GMC2016

Additional specifications

Spindle speed
8000 rpm
Published spindle interface
BT40-150
T-slots
5 slots, 18 mm width, 125 mm spacing
Rapid traverse X / Y / Z
32 / 32 / 18 m/min
Cutting feed
1–10000 mm/min
X / Y guideways
Roller linear guides
Z guideway
Lined box guideway
Control
Syntec 22MA
Machine dimensions
2800 × 2350 × 2650 mm

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
