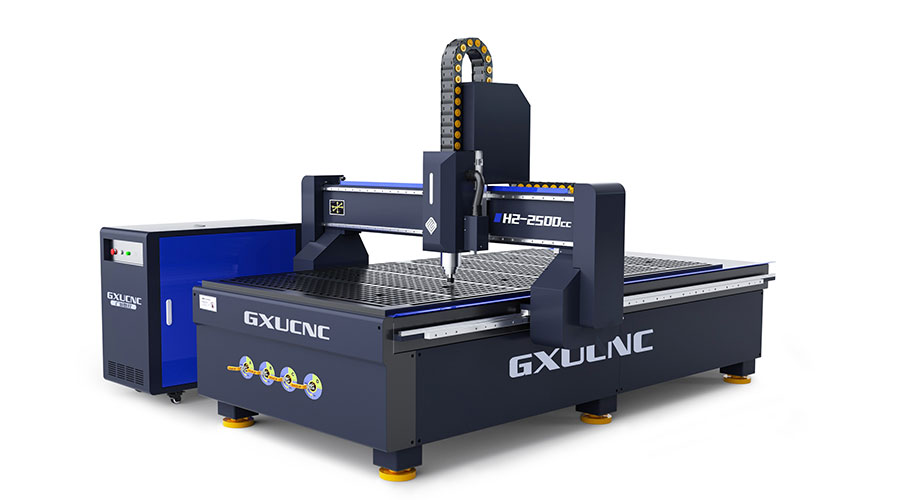

GXUCNC H2-2500CC
milling · Zhejiang Guangxu CNC Equipment Co., Ltd.
| Working area | 1300 × 2500 mm |
|---|---|
| Spindle power | 3.0 kW |
| Rapid running speed | 35 m/min |
| Drive system | Servo |
| Power supply | AC 380 V, 50 Hz |
| Machine weight | 1000 kg |
RFQ plant Zhejiang Guangxu CNC Equipment Co., Ltd.
- Lead time
- On RFQ
- MOQ
- Confirm with supplier
- Grade
- Catalog listing
Guangxu H2-2500CC is a CNC engraving and cutting machine with a published 1300 × 2500 mm working area. The manufacturer's model sheet specifies a 3.0 kW spindle, servo drive and a 35 m/min rapid running speed. Rapid speed is a positioning value and should not be used as the cutting-feed recommendation for a particular sheet material.
The machine measures 3175 × 2038 × 1856 mm and has a listed net weight of 1000 kg. Its electrical requirement is AC 380 V at 50 Hz. The official product material shows the bed, drive components and work-support arrangement; the supplied tooling and material-holding package should be identified in the quotation.
The published processing and repeat-positioning figures are ±0.2 mm and ±0.1 mm respectively. These remain manufacturer specifications, not an independently established tolerance for every finished component. Submit material type, sheet thickness, feature size and edge-finish expectations through RFQ, then agree a sample-cut acceptance procedure. Compare this model's working area and spindle configuration with the existing MD2500ATC before deciding whether automatic tool changing is required.
Is 35 m/min a recommended cutting speed?
No. It is the listed rapid running speed. Cutting feed depends on tool, material, depth and edge-finish requirements.
