GXUCNC MD2500ATC
3-axis machining · Zhejiang Guangxu CNC Equipment Co., Ltd.
| Working area | 1300 × 2500 mm |
|---|---|
| Spindle power | 7.5 kW |
| Non-cutting travel speed | 40 m/min |
| Axis drive | Servo motors |
| X / Y transmission | Rack drive |
| Z transmission | Ground ball screw |
RFQ plant Zhejiang Guangxu CNC Equipment Co., Ltd.
- Lead time
- On RFQ
- MOQ
- Confirm with supplier
- Grade
- Catalog listing

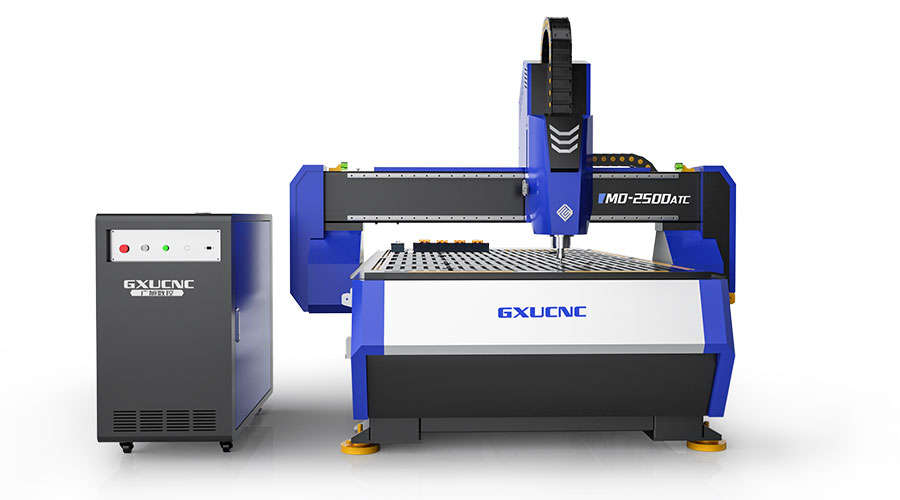

Guangxu MD2500ATC is an automatic-tool-changing CNC router with a 1300 × 2500 mm working area. The manufacturer presents it for engraving, routing and milling sheet materials including wood, acrylic, plastics and selected non-ferrous metals. Material suitability still depends on the cutting tool, support method and operating conditions.
The machine uses a moving gantry and a welded bed that the manufacturer describes as stress-relieved before machining. X and Y use rack transmission, while Z uses a ground ball screw. Its specification gives a 7.5 kW spindle, servo-axis drives and a 40 m/min non-cutting travel speed; that speed is not a recommended cutting feed.
A four-tool inline magazine and automatic tool calibration support multi-tool jobs. The page lists G-code and PLT input formats, so the proposed CAD/CAM output should be validated with an appropriate postprocessor and trial toolpath. Confirm usable Z clearance, spindle-speed range, workholding and extraction equipment, which are not quantified in the reviewed model table.
Can the 40 m/min figure be used as cutting feed?
No. It is the published non-cutting travel speed. Cutting feed depends on material, cutter, engagement and workholding.
