Hachi · 3-axis machining

Hachi HCA4500

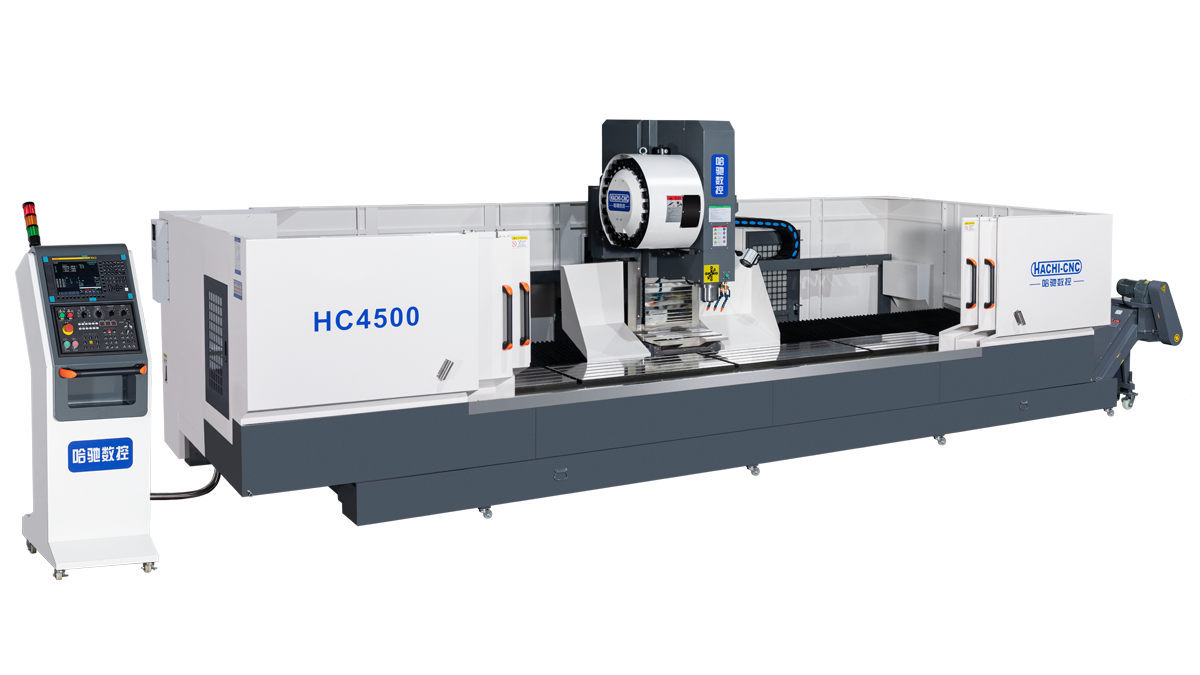

Hachi HCA4500 manufacturer image
Official classic-series image marked HC4500; specifications follow the current HCA4500 table. Confirm delivered configuration.

HCA4500 is the classic BT40 profile-machining reference on HACHI’s HCA4500/HCA6500 page. Its own column gives 4500 / 550 / 700 mm X / Y / Z travel, 12000 rpm maximum spindle speed and a 24-position disc magazine. The original manufacturer image is marked HC4500; confirm the delivered designation and enclosure rather than assigning the photographed name to the current parameter column.

The spindle body is listed at 150 mm and the servo-power pair at 11/18.5 kW, with its duty basis unstated. Obtain the selected motor/drive duty and torque curve, tool/holder limits and fixture clearance. Z travel is not unrestricted profile height. The shared series installation ranges do not establish an exact HCA4500 footprint or mass; obtain its order-specific layout.

For long mounting-hole patterns or rail/linear-module profiles, provide the section, blank variation, full feature span and support/clamp coordinates. Prove the longest tool and any datum transfer during a clamp move. Measure the released part over the required length, including straightness/twist, hole positions and threads. The catalogue full-stroke X positioning reference is separate from finished-profile acceptance; include load/unload, tools, rejects and restart in the production trial.

Catalog specifications

X travel
4500 mm
Y travel
550 mm
Z travel
700 mm
Rapid traverse X / Y / Z
60 / 28 / 28 m/min
Maximum spindle speed
12000 rpm
Spindle diameter
150 mm

Other Hachi rows

Additional specifications

Spindle taper
7:24 No. 40
Toolholder interface
BT40
Axis servo power X / Y / Z
3.0 / 3.0 / 3.0 kW
Spindle servo power
11 / 18.5 kW, catalog rating pair
Tool magazine
24-position disc type
Catalogue positioning references
Full-stroke X 0.03 mm / Y and Z 0.01 mm; not finished-part guarantee

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
