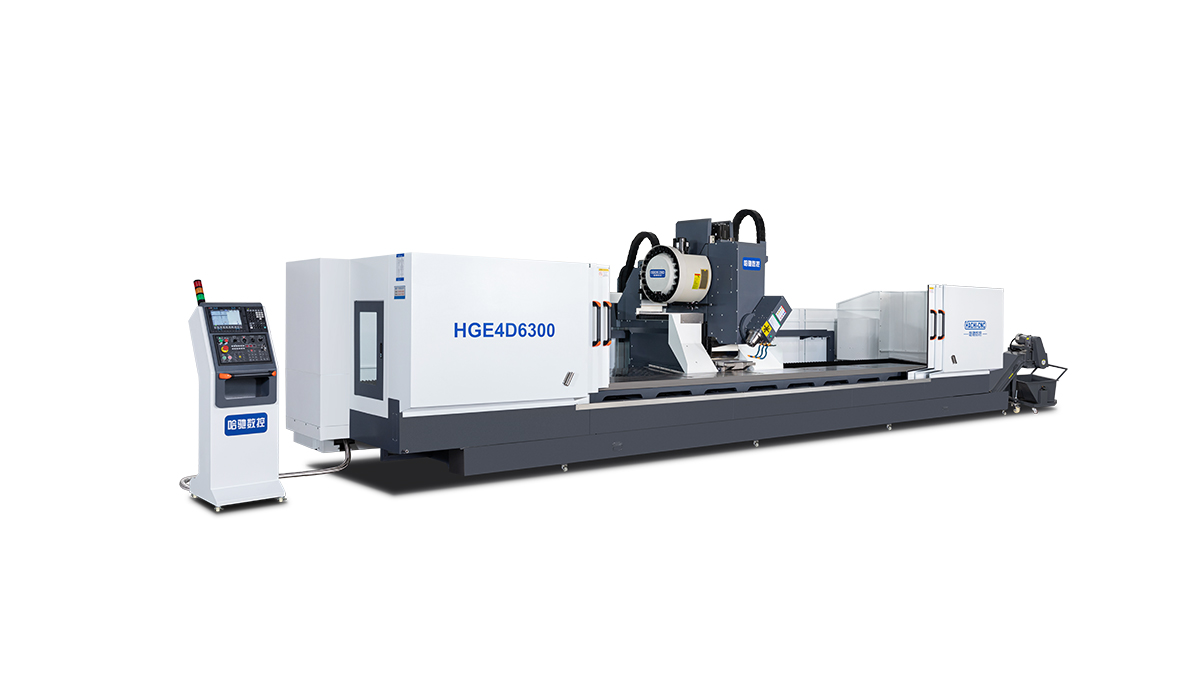

Hachi HGE4D6300

Hachi HGE4D6300 is a four-axis profile machining center combining milling, drilling and tapping. Its specification distinguishes the 6400 mm X travel used for vertical machining from a 5970 mm spindle-nose span in the horizontal machining arrangement. Those figures should not be treated as an identical usable length for every tool orientation.

Y and Z travels are 600 and 700 mm. The electric spindle has a 150 mm body diameter, an 11 kW motor and a maximum speed of 20000 rpm, with a BBT40 interface. A 24-tool disc magazine supports the published configuration. X rapid traverse is 60 m/min, while Y and Z are each listed at 28 m/min.

The overall length is approximately 11 metres including the water tank and chip conveyor, and approximate weight is 16.5 tonnes. Provide the extrusion section, end operations, side features and clamp positions through RFQ. Confirm the rotary-axis working range, tool reach and collision envelope; the reviewed table does not establish a universal side-machining clearance for every fixture.

Can a 6400 mm part always be machined horizontally?

The source distinguishes 6400 mm vertical-machining X travel and a 5970 mm horizontal spindle-nose span. Obtain a fixture-and-tool envelope check.
