Haite HLC3022

Gantry · Shandong Haite CNC Machine Tool Co., Ltd.

Catalog figures — see source review
Table size3000 × 1800 mm
Y / Z travel2400 / 1000 mm
Distance between columns2200 mm
Spindle nose to table200–1200 mm
Spindle-speed range80–6000 rpm
Spindle interfaceBT50, 190 mm spindle specification

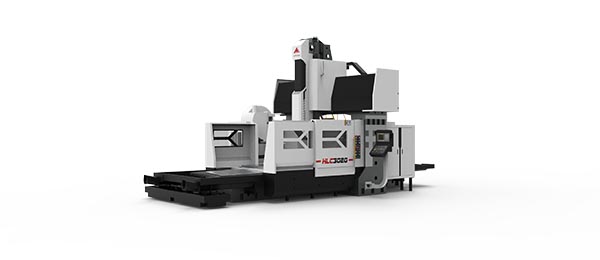

Haite HLC3022 manufacturer image

HLC3022 — manufacturer product image. Confirm the ordered enclosure and equipment.

Haite HLC3022 is a fixed-beam, moving-table gantry machining center for large mold bases, frames and cast components. The model table gives a 3000 × 1800 mm worktable, 2400 mm Y travel and 1000 mm Z travel. Column spacing is 2200 mm, and the spindle nose can be positioned 200–1200 mm above the table.

The BT50 spindle is listed from 80 to 6000 rpm with a 15/18.5 kW motor. A 24-tool disc-arm magazine accepts tools up to 400 mm long and 18 kg, subject to pocket-clearance restrictions. The published control is FANUC 0i-MF (3B) Plus; right-angle heads and a fourth axis are optional additions.

The source gives different X-travel values in its introductory text and specification table, so an X-travel commitment must be confirmed in the quotation. Provide fixture dimensions, part mass, machining faces and longest tool through RFQ. Check guideway configuration and optional-head clearances, and allow maintenance access beyond the published 8400 × 5400 × 5300 mm dimensions.

Is a fourth rotary axis included?

The source describes a fourth axis as an accessory option. Control capability alone does not establish that the physical rotary unit is supplied.

Same listing
VMC1270

Additional specifications

Spindle motor
15 / 18.5 kW
Rapid traverse X / Y / Z
10 / 12 / 10 m/min
Tool magazine
24-tool disc-arm type
Maximum tool weight
18 kg
Maximum tool length
400 mm
Control
FANUC 0i-MF (3B) Plus
Machine dimensions
8400 × 5400 × 5300 mm

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
