Haite VMC1270

3-axis machining · Shandong Haite CNC Machine Tool Co., Ltd.

Catalog figures — see source review
X / Y / Z travel1200 / 700 / 700 mm
Table size1300 × 600 mm
Table load1000 kg
T-slots5 × 18 mm, 120 mm pitch
Spindle nose to table120–820 mm
Spindle interfaceBT40

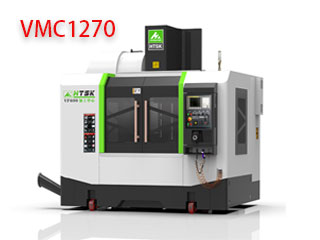

Haite VMC1270 manufacturer image

Haite VMC1270: manufacturer catalog image. Confirm the ordered configuration.

Haite VMC1270 is a vertical machining center with 1200 × 700 × 700 mm linear travel. The reviewed table specifies a 1300 × 600 mm worktable and a 1000 kg load limit. Applications named by the manufacturer include mold making, automotive components, general mechanical parts and pump or valve bodies.

The base spindle entry is BT40 with a toothed synchronous-belt drive and a 50–8000 rpm range. X and Y rapid traverse are 24 m/min, while Z is 20 m/min; the cutting-feed range is separately listed as 1–8000 mm/min. A 24-tool disc magazine is specified, with an 8 kg maximum tool weight and 300 mm maximum tool length.

The page describes roller linear guides, aged cast components, automatic lubrication and spindle cooling. Control choices and optional chip handling, coolant-through-spindle and rotary tables require quotation confirmation. Check the 120–820 mm spindle-nose-to-table range with the full fixture, component and tool assembly; nominal travel alone does not establish tool access to every feature.

Does the catalog’s rotary-axis option mean a five-axis machine is standard?

No. Rotary equipment and the controller’s motion functions need to be specified and confirmed separately.

Same listing
HLC3022

Additional specifications

Spindle speed
50–8000 rpm
Spindle transmission
Toothed synchronous belt
Rapid traverse X / Y / Z
24 / 24 / 20 m/min
Cutting feed
1–8000 mm/min
Tool magazine
24 tools
Maximum tool weight
8 kg
Maximum tool diameter, full magazine
80 mm
Maximum tool length
300 mm
Compressed air
0.6–0.8 MPa
Machine dimensions
3400 × 2420 × 2600 mm
Controller choices
FANUC / Syntec / other quoted packages

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
