Hanspark HF1260

Hanspark HF1260 manufacturer image

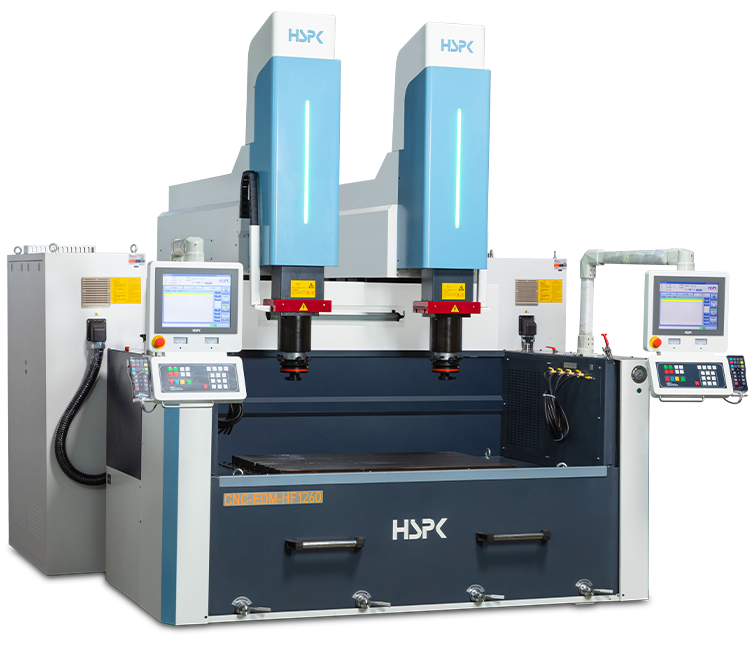

HF1260 — manufacturer product image. Confirm the ordered enclosure and equipment.

Hanspark HF1260 is a twin-head EDM configuration with a 1250 × 800 mm worktable. The model table lists X travel as 700/700 mm for its paired heads, alongside 600 mm Y travel and 400 mm Z travel. This should not be interpreted as a single uninterrupted 1400 mm X stroke.

The stated maximum workpiece load is 6000 kg and the maximum electrode load is 80 kg. A separate W movement is listed at 400 mm, while the electrode-plate-to-table distance is 500–900 mm. These dimensions determine whether the electrode, holder and workpiece can be assembled with adequate approach clearance.

The work tank measures 2000 × 1100 × 600 mm, with 1500 litres of working fluid and a listed maximum fluid height of 450 mm. The standard current is 50 A, with 100 A offered as an option. Send cavity locations, electrode materials, simultaneous-head requirements and required finish through RFQ. Confirm tank access, head coordination and the generator package before comparing cycle estimates with the existing G45L listing.

Catalog specifications

X travel
700 / 700 mm, twin-head values
Y / Z travel
600 / 400 mm
W travel
400 mm
Worktable
1250 × 800 mm
Electrode-plate to table distance
500–900 mm
Maximum electrode load
80 kg

Before you RFQ

Is 700/700 mm a combined 1400 mm X stroke?

No. It describes the paired-head arrangement. Confirm each head’s reachable area and the permissible overlap for the proposed electrodes.

Other Hanspark rows

Additional specifications

Maximum workpiece load
6000 kg
Work tank
2000 × 1100 × 600 mm
Working-fluid volume
1500 L
Maximum fluid height
450 mm
Standard / optional current
50 / 100 A
Machine dimensions
3700 × 3250 × 2940 mm
Machine weight
7000 kg

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
