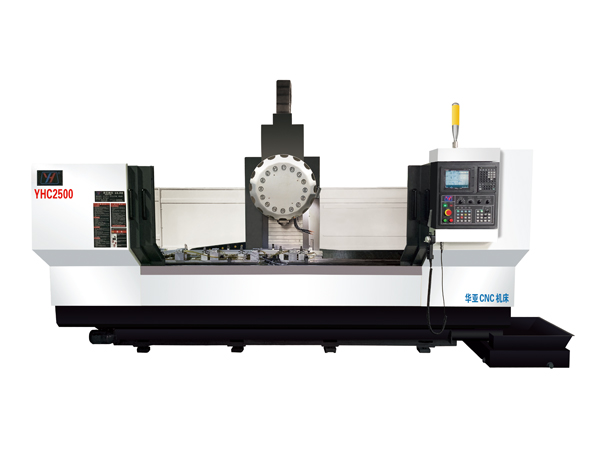

Huaya YHC2500
milling · Shenzhen Huaya CNC Machine Tool Co., Ltd.
| Table size | 2500 × 350 mm |
|---|---|
| Table load | 800 kg |
| X / Y / Z travel | 2500 / 400 / 300 mm |
| Spindle center to column | 420 mm |
| Spindle nose to table | 100–550 mm |
| Spindle-speed choices | 12000 / 20000 rpm; confirm selected spindle |
RFQ plant Shenzhen Huaya CNC Machine Tool Co., Ltd.
- Lead time
- On RFQ
- MOQ
- Confirm with supplier
- Grade
- Catalog listing
Huaya YHC2500 is a moving-column machining center for long components, using a 2500 × 350 mm worktable with an 800 kg load rating. The model-specific specification lists 2500/400/300 mm X, Y and Z travel. Its moving-column arrangement keeps the long workpiece on the table while the machining assembly travels along it.
This listing follows the YHC2500 column, which uses a BT30 spindle and a 16-tool magazine. The adjacent YHC2500B column has a different spindle interface, Z travel and magazine capacity and is not substituted here. The model table lists 12000/20000 rpm spindle choices; confirm the actual spindle package rather than relying on the general series description.
The maximum tool weight is 3 kg and spindle motor power is 5.5 kW. X/Y/Z rapid traverse is 30/48/48 m/min. Provide the profile cross-section, clamp spacing, end access and longest tool through RFQ. Check the 100–550 mm spindle-to-table range and service space around the approximately eight-ton machine before finalizing the installation layout.
Are the YHC2500B parameters included here?
No. This page follows YHC2500: BT30, 300 mm Z travel and 16 tools. The B version has a different configuration.
