Huaya YHC8050

3-axis machining · Shenzhen Huaya CNC Machine Tool Co., Ltd.

Catalog figures — see source review
X / Y / Z travel800 / 500 / 530 mm
Table size900 × 450 mm
Table load550 kg
T-slots3 slots, 18 mm width, 140 mm spacing
Spindle nose to table50–580 mm
Spindle center to column548 mm

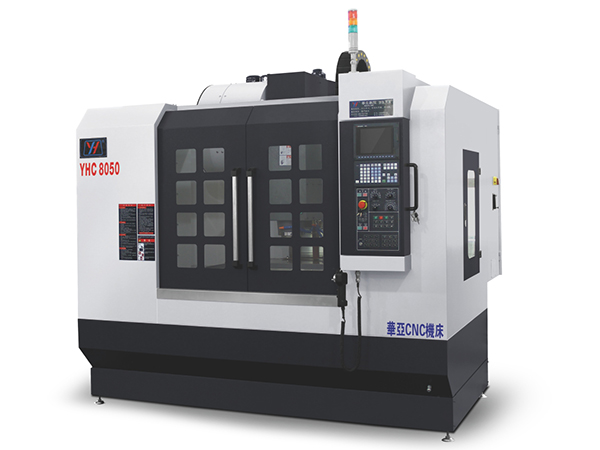

Huaya YHC8050 manufacturer image

Huaya YHC8050: manufacturer catalog image. Confirm the ordered configuration.

Huaya YHC8050 is a vertical machining center with linear guides on all three axes. Its table measures 900 × 450 mm and carries up to 550 kg, including the fixture. The 800 × 500 × 530 mm travel envelope should be checked together with spindle clearance and the longest tool in the planned machining sequence.

The machine uses a BT40 spindle and a cam-driven arm-type tool changer. The published magazine capacity is 24 tools, with an 80 mm maximum tool diameter when neighboring positions are occupied and an 8 kg maximum tool weight. Huaya quotes an approximately 1.8-second tool-to-tool change, which does not represent the complete cutting cycle.

Automatic lubrication supplies the guideways and screws, while protective covers help keep chips off the guides. The specification offers 10000 and 12000 rpm spindle configurations and several control brands. Confirm the selected spindle, control, available functions and tooling-clearance layout before requesting a trial on communications, hardware or other precision components.

Which spindle speed is standard?

The reviewed table lists 10000 and 12000 rpm without clearly identifying a default. Specify the required speed and obtain confirmation in the quotation.

Same listing
YHC2500

Additional specifications

Spindle speed configurations
10000 or 12000 rpm; confirm selection
Spindle interface
BT40
Rapid traverse X / Y / Z
48 / 48 / 48 m/min
Tool magazine
24 tools
Maximum tool diameter, full magazine
80 mm
Maximum tool weight
8 kg
Tool-to-tool change time
Approximately 1.8 s
Control alternatives
Mitsubishi, FANUC or Huazhong
Machine weight
4800 kg
Machine dimensions
2500 × 2333 × 2520 mm

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
