J-Tech JT-TL510A

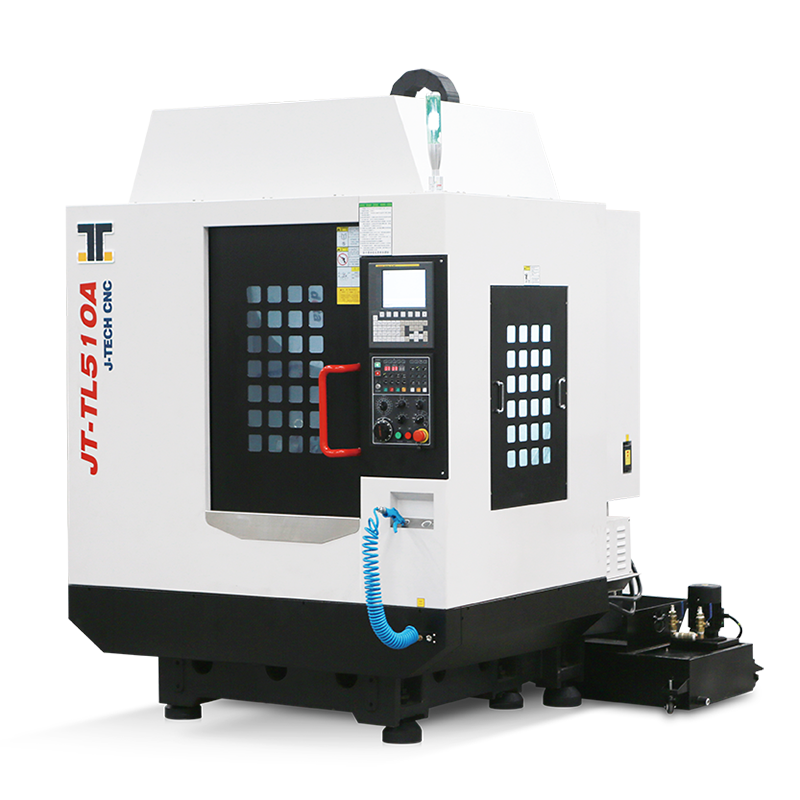

J-Tech JT-TL510A manufacturer image
Whole matching original JT-TL510A photograph; delivered configuration to specify.

JT-TL510A is J-TECH’s compact BT30 drilling and tapping centre reference for supported housings and small parts. Its exact table lists 510 × 400 × 350 mm travel, a 650 × 400 mm table and 250 kg load reference. Include the fixture and its offset rather than checking only the blank. For a thin shell, identify support points and clamping forces, then inspect critical form and datum relationships after release where deformation matters.

The model table gives 150–500 mm spindle-nose-to-table distance and 450 mm spindle-centre-to-column distance. Draw the shortest tool at the lowest feature and the longest holder above the tallest clamp. Its 20,000 rpm direct spindle uses BT30. Obtain duty and torque at the actual tap/cutter speeds; maximum rpm does not establish useful low-speed torque or tool life. The 60 m/min rapid reference is distinct from the listed 1–10,000 mm/min cutting-feed range and full-part cycle.

The exact table gives 21 magazine positions, Ø60/80 mm maximum tool diameter and 200 mm length, but the structure caption labels 16 tools. The diameter pair does not define occupied-neighbour conditions. Request the selected magazine, complete-holder mass and occupied-tool map. The headline describes 1.9 s tool-to-tool whereas the table gives 2 s without the same definition. Keep those references separate and include approach, tapping reversal, chip clearing and inspection in elapsed time.

Catalog specifications

X / Y / Z travel
510 / 400 / 350 mm
Table size / load
650 × 400 mm / 250 kg
Spindle nose to table
150–500 mm
Spindle centre to column
450 mm
Model-table spindle
20,000 rpm direct / BT30
Rapid X / Y / Z
60 / 60 / 60 m/min

The table names FANUC 0i-MF and lists a 1840 × 2290 × 2645 mm machine body at 2800 kg, with three-phase 380 V/50 Hz/12 kVA supply. Obtain delivered layout, utilities and access separately. Trial the deepest blind thread, burr-sensitive edge and released housing using the actual fixture and thermal conditions. The manufacturer describes robot loading and inspection integration, but those require separate interfaces, safeguards, sorting and combined-cell acceptance. The original photograph is visibly marked JT-TL510A and is retained whole.

Other J-Tech rows

Additional specifications

Cutting-feed reference
1–10,000 mm/min
Magazine reference
Table 21 positions; structure caption 16, selected build to confirm
Tool diameter / length
Ø60/80 mm / 200 mm; the catalogue does not say whether Ø80 mm needs the adjacent pockets left empty
Tool-change reference
Table 2 s; headline 1.9 s tool-to-tool, definition to agree
Table control
FANUC 0i-MF
Machine body / mass
1840 × 2290 × 2645 mm / 2800 kg
Power-supply reference
Three-phase 380 V / 50 Hz / 12 kVA; destination supply to agree

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
