JFMT J1VMC500

3-axis machining · Jinan First Machine Tool Co., Ltd.

Catalog figures — see source review
X / Y / Z travel800 / 550 / 550 mm
Table / load1000 × 550 mm / 500 kg
Spindle nose to table120–670 mm
Spindle centre to column595 mm
Spindle referenceBT40 / 8000 rpm / belt drive
Spindle motor reference7.5 / 11 kW; duty definition to confirm
JFMT J1VMC500 manufacturer image

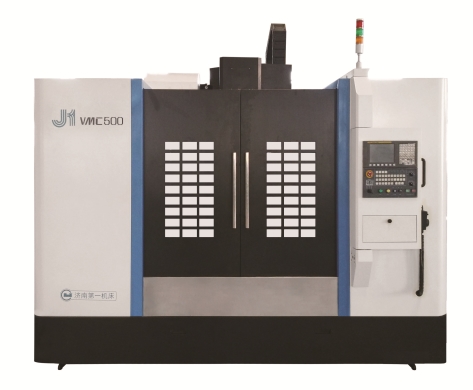

Whole matching original J1VMC500 photograph.

J1VMC500 is JFMT’s fixed-column enclosed vertical machining centre with linear guides on three axes. Its name does not describe its actual X stroke: the model table gives 800 × 550 × 550 mm travel. The table is 1000 × 550 mm with a 500 kg load reference. Review fixture dimensions, total mass and distribution, including loading hardware, rather than checking only the bare part or assuming all off-centre loads are permitted.

The nose-to-table range is 120–670 mm, and spindle-centre-to-column distance is 595 mm. Draw tool-tip access to the lowest surface, the longest holder above the highest clamp and the withdrawal path. Its belt-driven BT40 spindle is listed at 8000 rpm with a 7.5/11 kW motor reference; the table does not state the power duty split. Request the torque/duty curve and the delivered holder and pull-stud interfaces for the intended drilling, milling and boring operations.

The disc magazine gives 24 positions, 300 mm maximum tool length and 8 kg mass. Ø78 mm is the occupied-neighbour diameter reference; Ø120 mm needs adjacent positions empty. Account for complete holders and large-tool spacing, including sister tools. The listed 2.0 s change reference and 36/36/24 m/min rapids do not establish accepted parts per hour. FANUC 0i-MF is the listed control, and the exact quoted configuration should be documented.

The table lists a 2800 × 2400 × 3200 mm body at 6000 kg and 30 kVA requirement. Obtain installation and maintenance access separately. For a housing, trial the deepest hole, longest boring assembly and lowest feature with actual clamps; include re-clamping where necessary and inspect critical datum relationships after release. A wheel route may still need separate turning, balancing or transfer operations. The whole original photograph visibly identifies J1VMC500 and is not substituted with a neighbouring model.

Same listing
J1VMC1370W

Additional specifications

Guideways
Linear guides on three axes
Rapid X / Y / Z
36 / 36 / 24 m/min
Magazine
24-position disc
Tool diameter
Ø78 mm with neighbours occupied / Ø120 mm with adjacent positions empty
Tool length / mass
300 mm / 8 kg
Tool-change reference
2.0 s; not complete part cycle
Control
FANUC 0i-MF
Machine body / mass
2800 × 2400 × 3200 mm / 6000 kg
Power requirement
30 kVA; installed utilities to agree

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
