Jiangnan · 3-axis machining

Jiangnan JN-T500

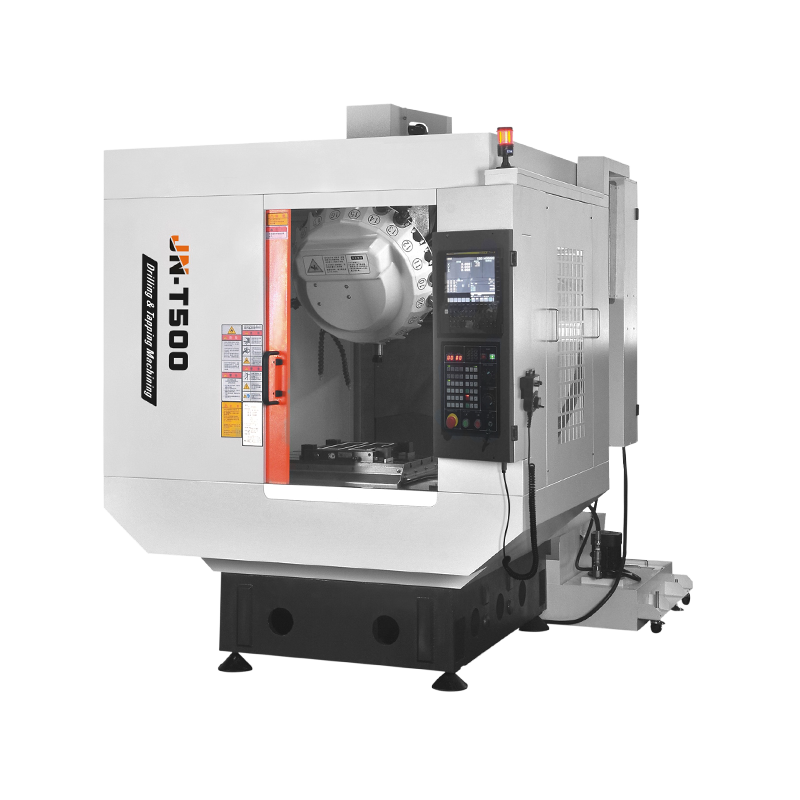

Jiangnan JN-T500 manufacturer image
Whole matching original JN-T500 photo; selected control, spindle and accessories to agree.

JN-T500 is Jiangnan’s BT30 drilling and tapping centre reference for a loaded setup within 500 × 400 × 330 mm X/Y/Z travel. Its table is 650 × 400 mm with a listed 300 kg load reference and a base spindle-nose window of 150–480 mm. Send the fixture, total mass/offset, tap sizes, hole depths and longest holder. Check whether a short drill reaches a thin plate and whether the tallest setup still leaves withdrawal clearance; table dimensions alone do not settle either question.

The current web table describes 12,000 rpm direct drive and writes motor power as 3.7–5.5 kW without defining duty. The linked technical file instead names FANUC 0i-MF, a 20,000 rpm direct-driven spindle and 2.2–3.7 kW. Keep those references separate. Obtain one dated build sheet, spindle/motor curve and duty definition rather than assigning the web power range to the faster FANUC build. The web nose-distance row says 100 mm raising while its option list says 150 mm; confirm the actual rise and resulting clearance, without adding it to Z stroke.

The 21-tool reference accepts Ø60 mm occupied assemblies or Ø80 mm with adjacent space empty, with 250 mm length and 3 kg tool-mass limits. Count sister taps, drills, finishing and probing assemblies after reserving the empty positions. The listed 1.75 s is tool-to-tool, not a complete cut-to-cut cycle. For blind tapping, trial reversal, chips and the selected coolant arrangement. The web and technical file contain inconsistent air-pressure descriptions, so no single pressure rating is adopted here; request the delivered machine’s utility sheet.

Catalog specifications

X / Y / Z travel
500 / 400 / 330 mm
Table size / load reference
650 × 400 mm / 300 kg
Base spindle nose to table
150–480 mm
Spindle interface
BT30
Web spindle reference
12,000 rpm, direct drive
Downloadable FANUC spindle reference
20,000 rpm, direct drive; separate selected build

Use the hardest hole and actual material/fixture for acceptance. Agree thread gauge, positional datum, burr limits, sample size, tool life and elapsed cycle including loading and cleaning. Static positioning figures in a manufacturer file are separate from finished-part results. The listed machine body is 1760 × 2500 × 2200 mm at approximately 3500 kg; obtain door, tank, chip and service clearances for the selected options. The whole original photo carries JN-T500, but does not establish which control, spindle or automatic-loading accessories are fitted.

Other Jiangnan rows

Additional specifications

Web / FANUC-file motor power
3.7–5.5 / 2.2–3.7 kW respectively; duty not defined
Rapid traverse
53 m/min on X/Y/Z
Magazine capacity reference
21 tools
Occupied / neighbouring-space-empty diameter
60 / 80 mm
Tool length / mass limit
250 mm / 3 kg
Tool-to-tool reference
1.75 s; not chip-to-chip
Listed machine dimensions / mass
1760 × 2500 × 2200 mm / approximately 3500 kg
Raised-column scope
Web row 100 mm versus option list 150 mm; selected revision to confirm

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
