Kaibo DC-6060 Graphite

Kaibo DC-6060 Graphite manufacturer image

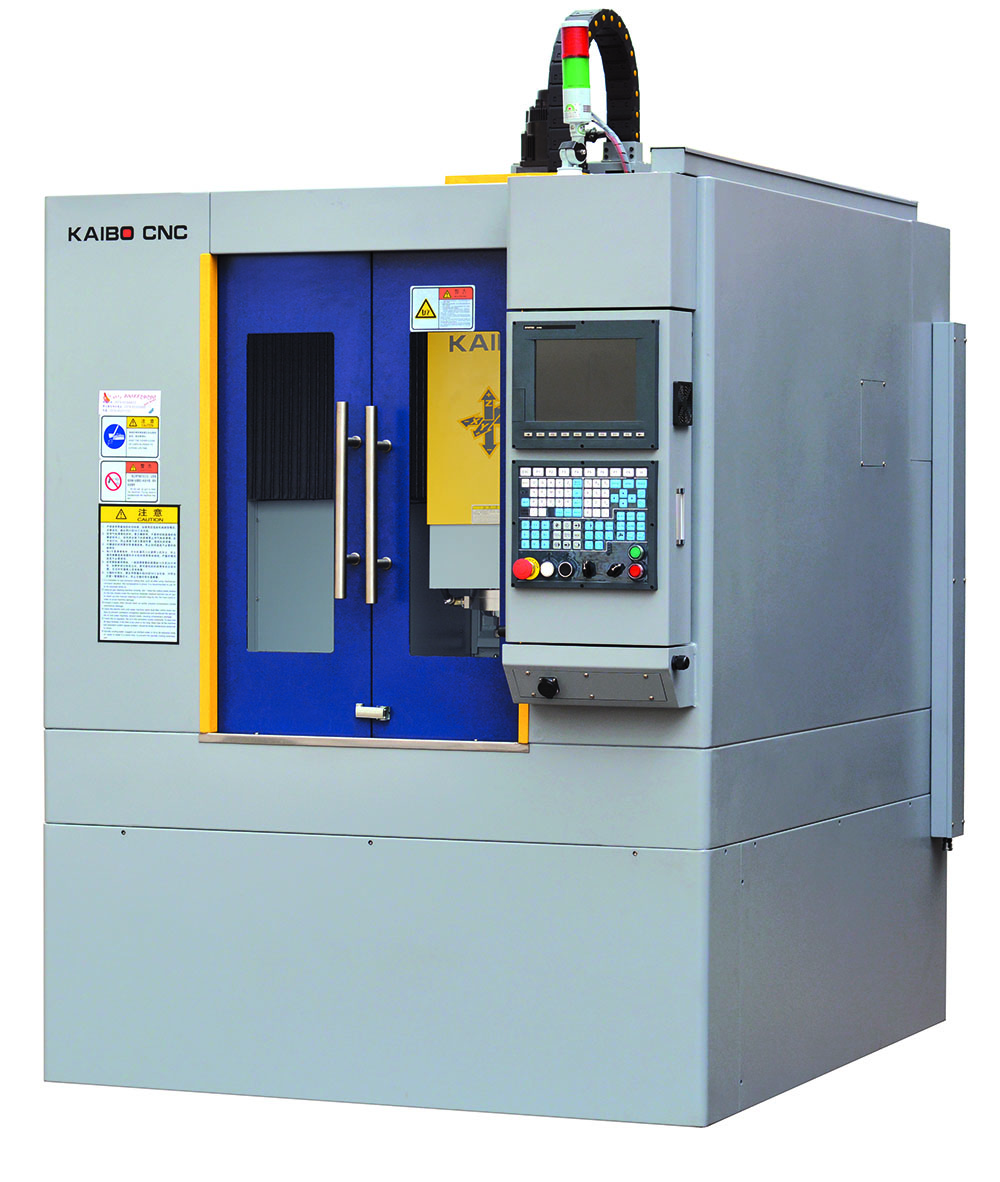

DC-6060 Graphite — manufacturer product image. Confirm the ordered enclosure and equipment.

Kaibo’s DC-6060 graphite configuration is documented for wet cutting with a spindle water curtain, enclosed machine, double telescopic axis covers and dedicated graphite filtration. It is not described as a dry extraction machine. Its table lists 600 / 600 / 360 mm travels, a 605 × 605 mm table, 300 kg load, 660 mm gantry width and 70–430 mm spindle-nose-to-table range. Review the blank and fixture together.

The published spindle is 5.5 kW at up to 24000 rpm with ER20 collets for 3.17–12 mm shanks. A ten-position disc tool changer is optional; Syntec 21MA is the catalogue control. The shoe-mould DC-6060A’s ER25 range, Z stroke and alternative magazines are separate. Confirm the delivered spindle/tool-changing interface, tool limits and program package rather than infer them from a shared 6060 designation.

Agree the graphite grade, wet-process compatibility, filtration maintenance, residue handling and cleaning/drying before the part’s next use. Trial the difficult geometry and real tool changes with the water curtain and filtration functioning, then measure the prepared released part using the agreed datums. Record accepted output, rejects, tools and operator/maintenance work. A photograph of the enclosure or a catalogue axis-accuracy entry is not proof of containment performance or drawing-specific electrode quality.

Catalog specifications

X / Y / Z travel
600 / 600 / 360 mm
Table size
605 × 605 mm
Table load
300 kg
Gantry width
660 mm
Spindle nose to table
70–430 mm
Maximum spindle speed
24000 rpm

Other Kaibo rows

Additional specifications

Spindle power
5.5 kW
Tool interface
ER20, 3.17–12 mm shanks
Rapid / cutting feed
15 / 10 m/min
Optional tool magazine
10-tool disc type
Control
Syntec 21MA
Machine weight
4200 kg
Machine dimensions
2030 × 1830 × 2430 mm
Positioning / repeat-positioning reference
0.01 / 0.01 mm; agree machine test separately from part acceptance
Debris process
Wet cutting, spindle water curtain and dedicated graphite filtration

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
