Kaibo DC-6060A

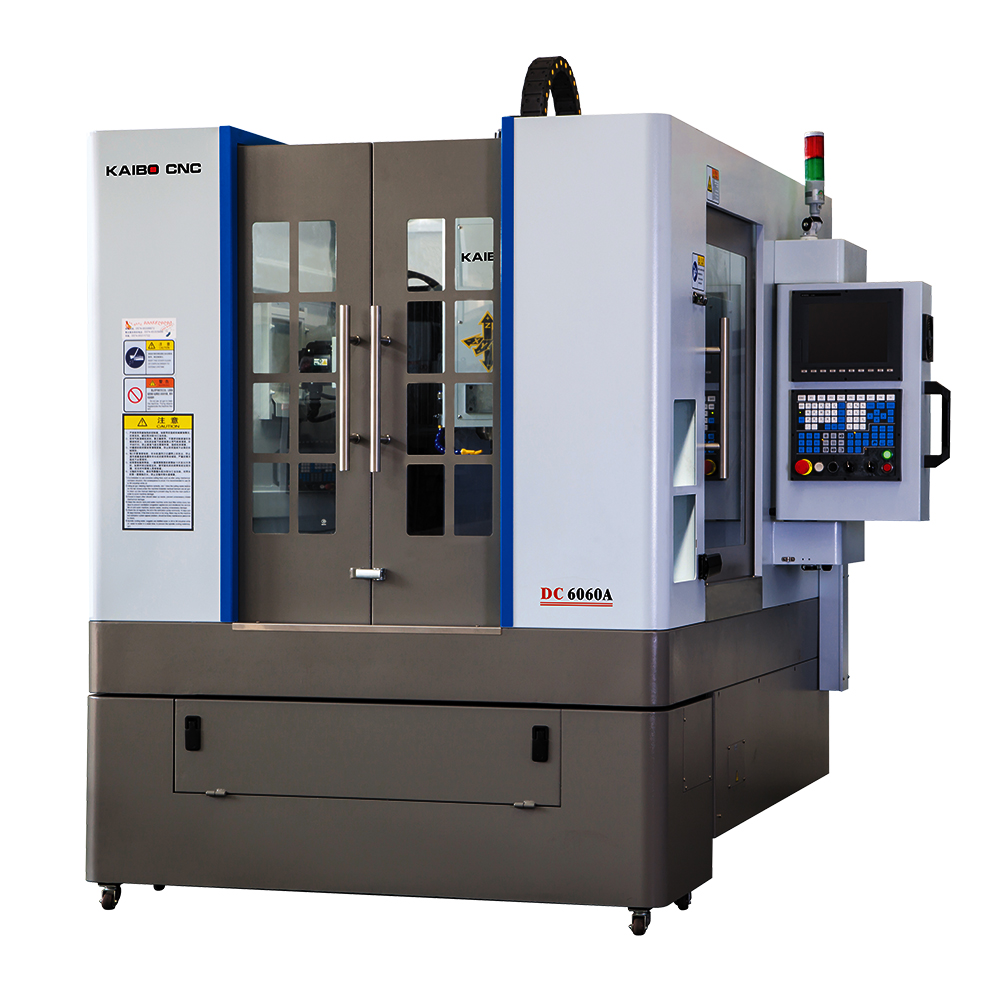

Kaibo DC-6060A manufacturer image
Kaibo DC-6060A: manufacturer catalog image. Confirm the ordered configuration.

DC-6060A is the shoe-mould engraving/milling reference on Kaibo’s official page. Its exact table lists 600 / 600 / 260 mm X / Y / Z travel, a 610 × 600 mm worktable and 300 kg maximum work load. Include fixture, clamps and blank in the load. The spindle-nose range is 130–390 mm, with a separate parenthesised 160–420 mm entry; obtain the ordered build and combined tool/holder/fixture clearance.

The source gives ER25 tooling for 3.17–16 mm shanks, a spindle up to 24000 rpm and 5.5 kW with a 7.5 kW alternative. Its tool changer is explicitly optional, with six-position linear and twenty-position disc alternatives. These should not be combined into one standard machine. Define the spindle, interface, magazine and Syntec 22MA control/program package in the quotation.

For a deep mould cavity or closely spaced detail, send the smallest radius, feature depth, material and longest cutter/holder projection. Trial the real roughing/finishing and tool changes; measure released geometry and the required surface/mating condition against the drawing. The 0.01 mm machine positioning entries and 24000 rpm rating do not warrant part tolerance or production output. Agree inspection, tooling records, replacement and restart, plus destination support.

Catalog specifications

X / Y / Z travel
600 / 600 / 260 mm
Table size
610 × 600 mm
Table load
300 kg
T-slots
5 slots, 16 mm width, 125 mm spacing
Rapid traverse
15 m/min
Maximum cutting feed
10 m/min

Other Kaibo rows

Additional specifications

Spindle interface
ER25
Tool shank range
3.17–16 mm
Maximum spindle speed
24000 rpm
Spindle motor
5.5 kW; 7.5 kW alternative
Control
Syntec 22MA
Machine weight
4200 kg
Machine dimensions
2200 × 1800 × 2200 mm
Positioning / repeat-positioning reference
0.01 / 0.01 mm; agree machine test separately from part acceptance
Spindle nose to table
130–390 mm; separate parenthesised 160–420 mm entry, confirm build
Optional tool changer
6-position linear or separate 20-position disc reference; confirm ordered spindle/interface

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
