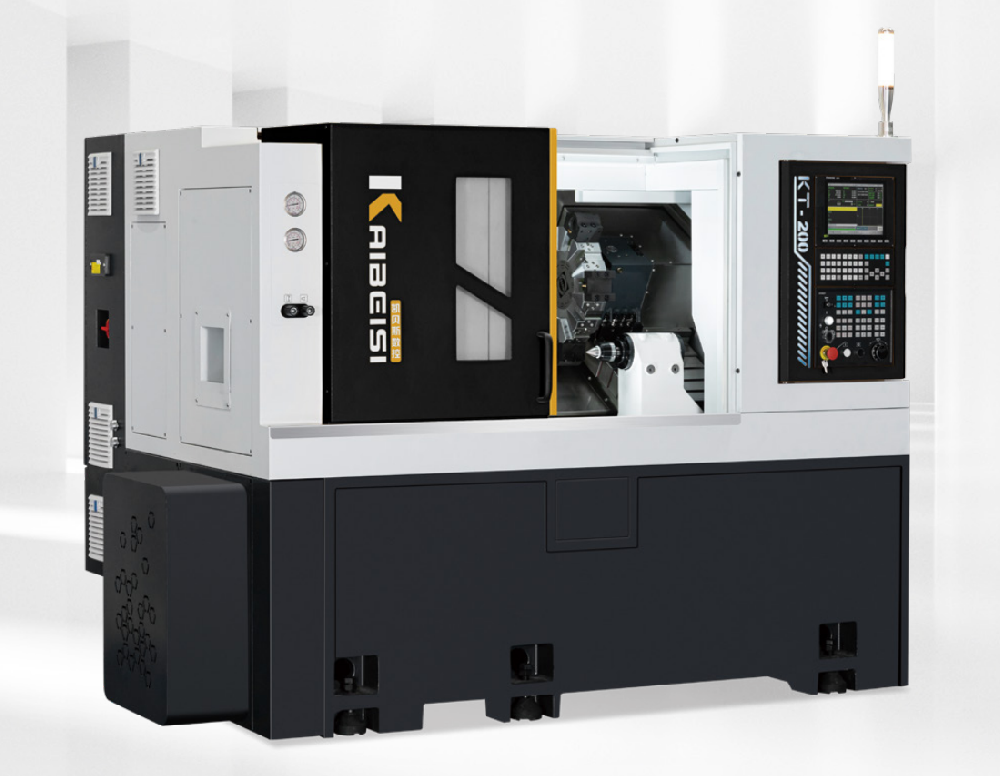

Keybase KT200
Guangdong Keybase CNC Equipment Co., Ltd. · Foshan
- Swing over bed500 mm
- Maximum machining diameter380 mm
- Maximum machining length500 mm
- X / Z travel205 / 530 mm
- Rapid traverse X / Z25 m/min
Keybase KT200 is a CNC turret lathe with a programmable tailstock and a listed maximum machining length of 500 mm. Bed swing is 500 mm and maximum machining diameter is 380 mm. X and Z travels are 205 and 530 mm respectively, with rapid traverse specified at 25 m/min.
The KT200 column identifies an eight-inch chuck, A2-6 spindle nose, 11 kW spindle motor and 3500 rpm maximum speed. These values differ from the KT300 on the same page. The 12-position servo turret accepts 25 × 25 mm external tool shanks and a 32 mm boring-bar holder diameter.
The table gives 51/65 mm bar capacity alternatives and corresponding 52/66 mm spindle-through-hole alternatives. Confirm the exact spindle and drawtube combination before selecting bar stock or a feeder. The catalog does not name a controller in the parameter table, so control make, functions and any automation equipment should be included explicitly in the quotation.
Is 65 mm bar capacity standard on every KT200?
The table lists 51 and 65 mm alternatives. The ordered spindle, drawtube and workholding package must confirm the usable capacity.
