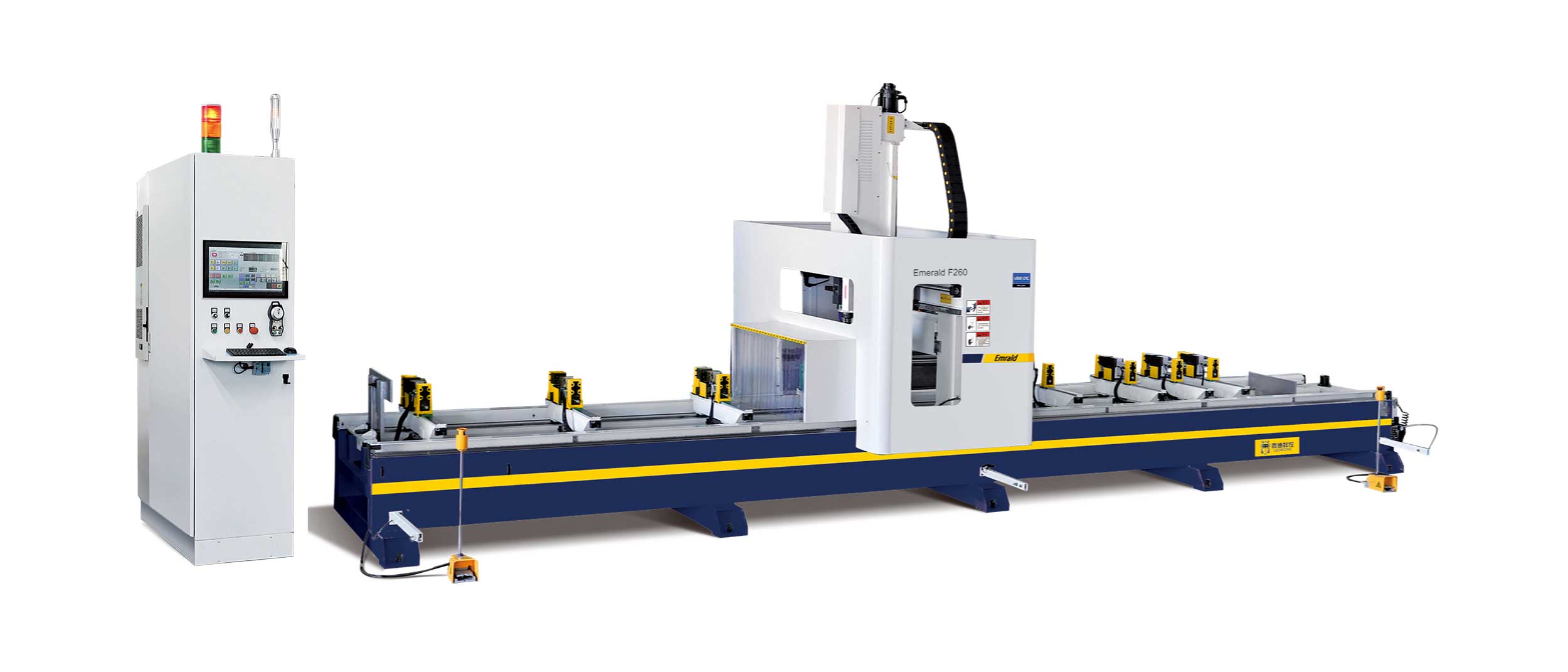

LEADCNC Emerald F260
4-axis machining · Shandong LEAD CNC Machinery Co., Ltd.
| X travel options | 7000 / 9000 / 12000 mm |
|---|---|
| Y travel | 900 mm |
| Z travel | 260 mm |
| Spindle rotation | ±90° |
| Maximum spindle speed | 24000 rpm |
| Spindle power | 9 kW |
RFQ plant Shandong LEAD CNC Machinery Co., Ltd.
- Lead time
- On RFQ
- MOQ
- Confirm with supplier
- Grade
- Catalog listing
LEADCNC Emerald F260 is a four-axis machining center for aluminum and light-alloy profiles. Its applications include mounting holes, drainage slots, lock openings and end milling. The spindle swivels through ±90 degrees, while the catalog lists three machine-length choices with 7000, 9000 or 12000 mm X travel.
Y and Z travels are 900 and 260 mm respectively. The described spindle is an HSD unit rated at 9 kW and up to 24000 rpm, paired with a nine-position tool magazine. PA control, pneumatic clamping and automatic lubrication or cooling are included in the product description. The specification table lists eight clamps.
The dual-zone arrangement allows loading and machining to be planned in separate areas, subject to the actual workpiece and safety configuration. Check profile cross-section, clamp positions, tool access and the selected X length before ordering. The page gives inconsistent X-speed figures, so a confirmed axis-speed schedule and a length-specific installation drawing should be included in the quotation.
Does the listed installation footprint apply to all three lengths?
A single footprint is shown alongside several X-travel options. Request the layout and weight for the exact machine length selected.
