LEADCNC Ultra X380

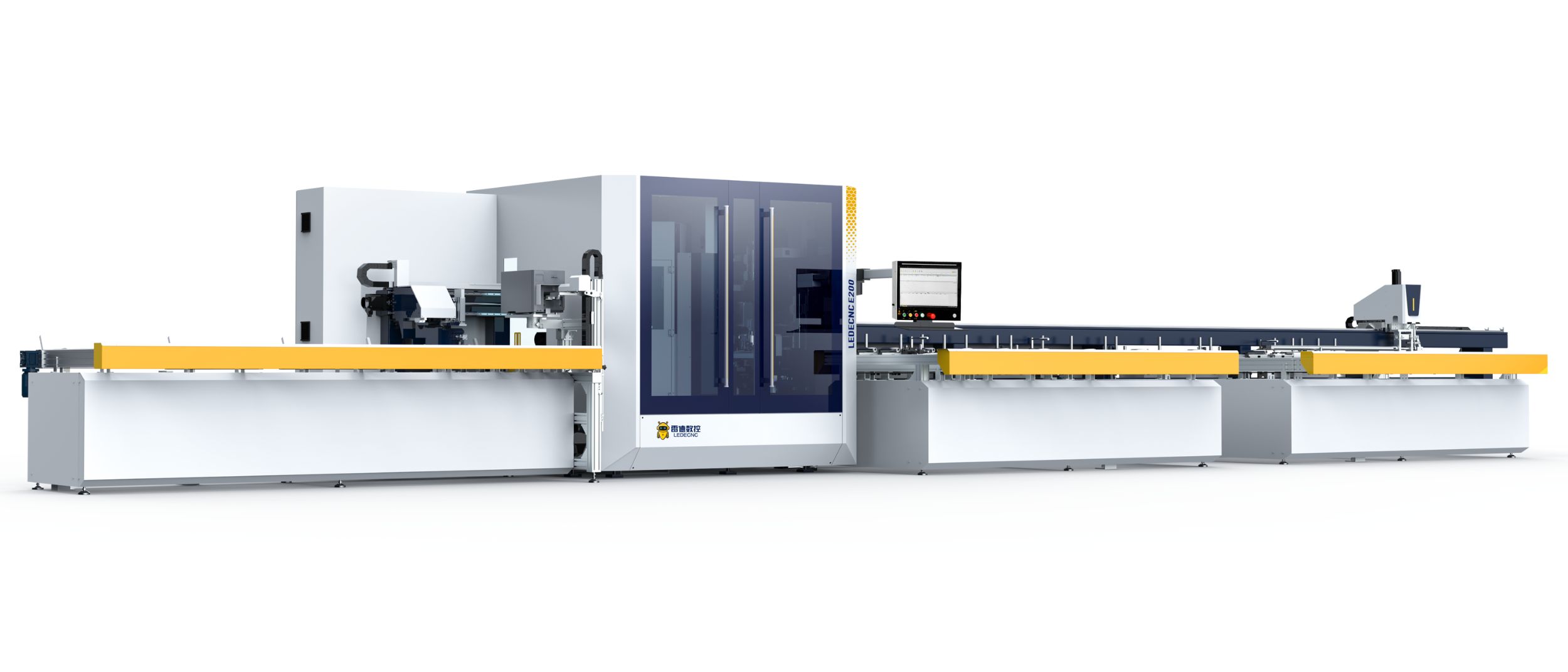

LEADCNC Ultra X380 manufacturer image
Ultra X380 model-page installation layout; loading magazine, machining center and outfeed. Confirm the ordered installation.

LEADCNC Ultra X380 combines milling, drilling, sawing and end milling for aluminum curtain-wall profiles. Its processing envelope covers lengths from 400 to 7000 mm, widths from 30 to 380 mm and heights from 30 to 200 mm. Raw stock has a separate minimum length of 1000 mm, which matters when estimating usable offcuts.

The line has six milling spindles. Upper and lower positions each combine 13.5 and 6.7 kW units, while the front and rear units are rated at 6.7 kW with ±90-degree rotation. The listed milling-spindle speed is 18000 rpm. A 600 mm, 7.5 kW saw and a separate 400 mm, 3 kW end-milling unit handle cutting and end operations.

Automatic feeding, unloading and labeling are described for the line. Its approximate 20.5-metre length makes stock flow and access planning important. Provide extrusion sections, end details, hole patterns and production mix through RFQ. Confirm clamp clearance, handling of finished parts and software integration; throughput depends on actual operations and cannot be inferred from the number of spindles alone.

Catalog specifications

Raw-profile length
1000–7000 mm
Processing length
400–7000 mm
Processing width
30–380 mm
Processing height
30–200 mm
Milling spindles
6
Maximum milling-spindle speed
18000 rpm

Before you RFQ

Can a 400 mm offcut be loaded as raw stock?

The catalog permits 400 mm processing length but specifies 1000 mm minimum raw-profile length. Confirm handling before planning offcut reuse.

Other LEADCNC rows

Additional specifications

Upper / lower spindle pairs
13.5 + 6.7 kW per pair
Front / rear spindles
6.7 kW each, ±90° rotation
Saw unit
600 mm blade, 7.5 kW
End-milling unit
400 mm blade, 3 kW, ±90°
Machine dimensions
20500 × 5500 × 3340 mm
Machine weight
16000 kg
Air supply
0.5–0.8 MPa, 300 L/min

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
