Lijie DSSK1000

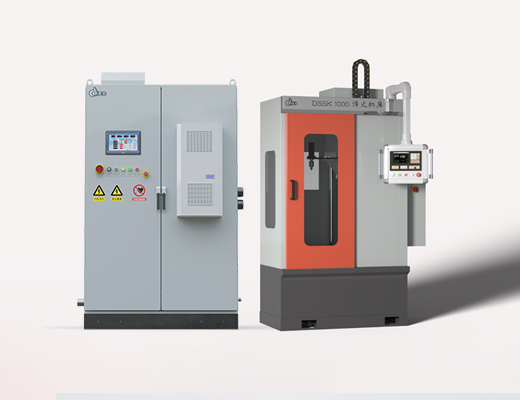

Lijie lists a DSSK1000 quenching station in its complete induction-hardening equipment range. The station designation appears on the official equipment image, while DSZP-160 identifies the separate heating power supply. These are different components: the station holds and moves the workpiece, and the supply provides the electrical heating output.
The complete-equipment page publishes a 500 mm hardening stroke, 500 mm maximum swing and 30 kg workpiece-load limit. Vertical movement is listed from zero to 100 mm/s and part rotation from zero to 300 rpm. The station has a 5 kW electrical requirement and approximately 1000 kg weight; these figures must not be confused with the heating cabinet's power and mass.
The accompanying DSZP-160 supply is listed at 160 kW with an adaptive 5–25 kHz output frequency. Obtain an order-specific configuration drawing before selection: the station's model designation does not establish a 1000 mm hardening stroke. Submit material, hardened-zone length, case-depth target, coil access and quench-medium requirements through RFQ, and agree a metallurgical trial and acceptance method.
RFQ plant Henan Lijie CNC Technology Co., Ltd.
- Lead time
- On RFQ
- MOQ
- Confirm with supplier
- Grade
- Catalog listing
Catalog specifications
- Equipment type
- Induction-hardening station with separate heating supply
- Published hardening stroke
- 500 mm; confirm ordered station configuration
- Published maximum swing
- 500 mm
- Vertical movement speed
- 0–100 mm/s
- Workpiece rotation
- 0–300 rpm
- Maximum workpiece load
- 30 kg
Before you RFQ
Does DSSK1000 mean a 1000 mm hardening stroke?
No such inference is supported. The complete-equipment page lists 500 mm stroke; confirm the ordered station configuration and fixture drawing.
