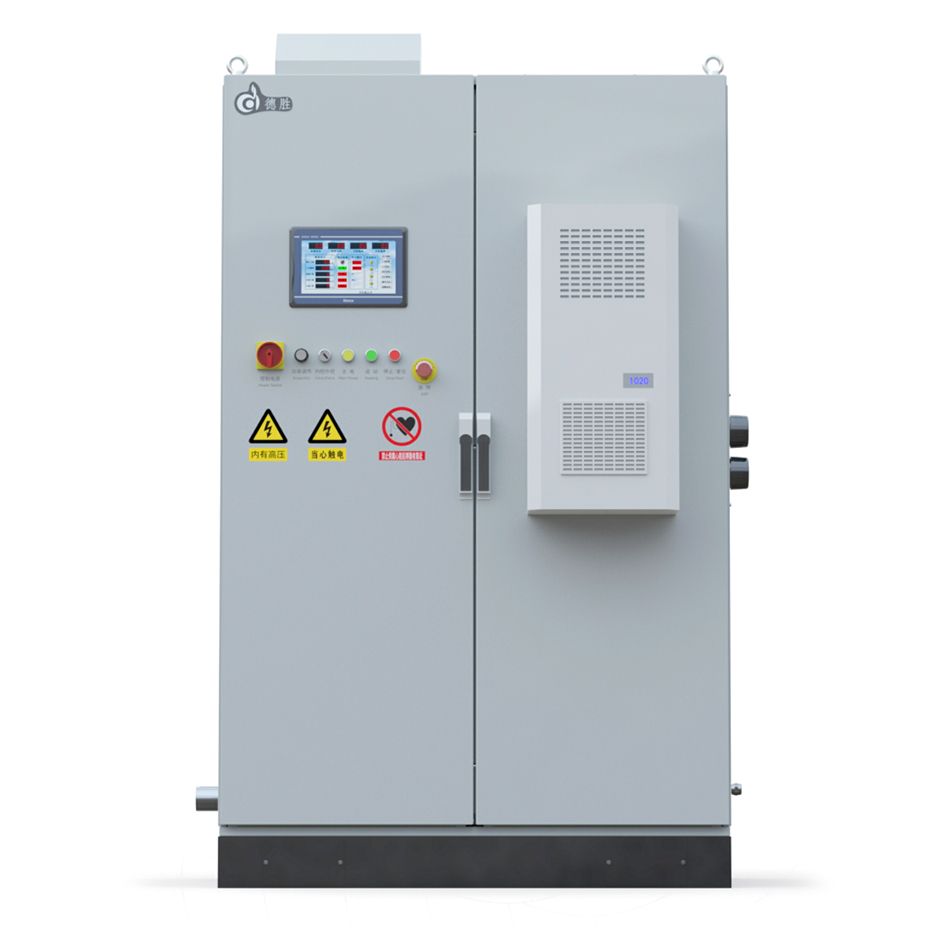

Lijie DSZP-160
Induction heat treatment · Henan Lijie CNC Technology Co., Ltd.
| Equipment scope | Induction-heating power supply for quenching system |
|---|---|
| Rated output power | 160 kW |
| Input supply | Three-phase 380 V AC, 50–60 Hz |
| Power adjustment range | 5–100% |
| Output frequency | 5–25 kHz, adaptive |
| Published power-control accuracy | ±2% |
RFQ plant Henan Lijie CNC Technology Co., Ltd.
- Lead time
- On RFQ
- MOQ
- Confirm with supplier
- Grade
- Catalog listing
Lijie DSZP-160 is a digital induction-heating power supply documented as part of a dual-station quenching system. Its rated output is 160 kW, adjustable from 5 to 100 percent, with an adaptive output-frequency range of 5–25 kHz. These are power-supply ratings and should not be confused with the separate mechanical drive power or workpiece capacity of the quenching machine.
The unit operates in constant-current mode and supports internal or remote control. An HMI and buttons provide operator access, while Ethernet and RS485 interfaces support integration with the surrounding equipment. The specified input is three-phase 380 V AC at 50–60 Hz. Cooling combines forced water circulation with a plate heat exchanger.
The published cabinet weight is 150 kg, with dimensions of 900 × 700 × 2000 mm. Confirm cooling-water conditions, coil matching, transformer selection and control-interface details for the intended process. Supply the workpiece material, heating zone, required temperature or hardness pattern and production cycle when requesting an integrated quenching proposal and acceptance trials.
Does the 150 kg weight describe the complete quenching machine?
No. It is listed under the heating power-supply specification. The mechanical quenching machine has separate dimensions, load and weight requirements.
