Mltor MLT-YK2232

Gear cutting · Zhongshan Mltor CNC Technology Co., Ltd.

Catalog figures — see source review
Maximum module6 mm
Maximum pitch diameter320 mm
Maximum full tooth depth14 mm
Maximum tooth-face width40 mm
Tooth count5–150
Root-cone angle0–90°

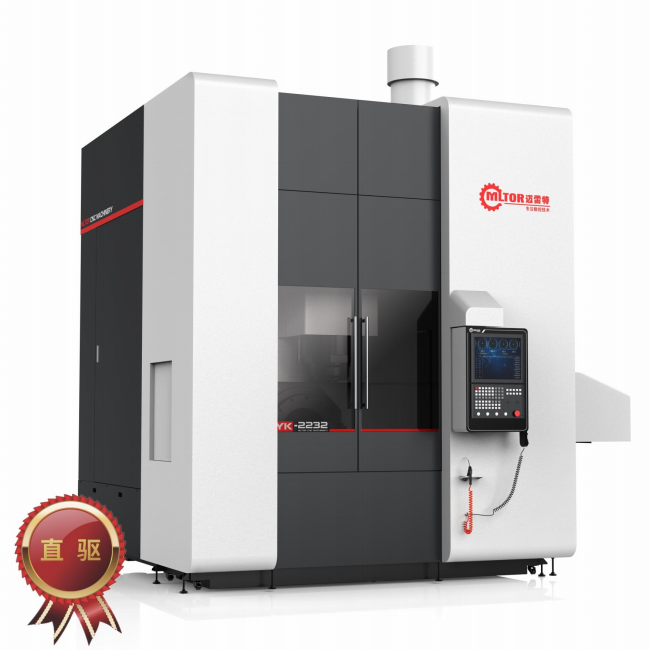

Mltor MLT-YK2232 manufacturer image

MLT-YK2232 — manufacturer product image. Confirm the ordered enclosure and equipment.

MLTOR MLT-YK2232 is a CNC gear milling machine with six controlled axes and five-axis simultaneous motion. The model-specific brochure gives a maximum module of 6 mm, a 320 mm maximum pitch diameter and a 40 mm maximum tooth-face width. These limits describe different aspects of a gear and must all be checked against the drawing.

The machine uses a vertical bed arrangement with an integrated chip conveyor and an independently supported sliding cutter structure. The direct-drive cutter spindle is rated up to 1000 rpm. The documented cutter-disc sizes range from 3.5 to 7.5 inches, with an HSK-100A interface; cutter geometry and the required generating method still need a process review.

The work spindle has separate rated and maximum speeds of 300 and 500 rpm. Send module, tooth count, cone geometry, material condition and inspection requirements through RFQ. Confirm cutter availability, workholding and software for the intended tooth form. Do not transfer the parameters of the previously listed MLT-YK8035 to this smaller model or infer achievable gear quality from its axis count.

Are the cutter and work-spindle speeds interchangeable?

No. The cutter spindle is listed up to 1000 rpm; the work spindle has a 300 rpm rating and 500 rpm maximum.

Same listing
MLT-YK8035

Additional specifications

Controlled / simultaneous axes
6 / 5
Maximum cutter-spindle speed
1000 rpm
Cutter-disc sizes
3.5 / 4 / 6 / 7.5 inch
Cutter interface
HSK-100A
Work spindle rated / maximum speed
300 / 500 rpm
Machine dimensions
3920 × 3201 × 3760 mm
Machine weight
15200 kg

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
