PAMA Speedmat HP

PAMA (Shanghai) Machine Tool Co., Ltd.

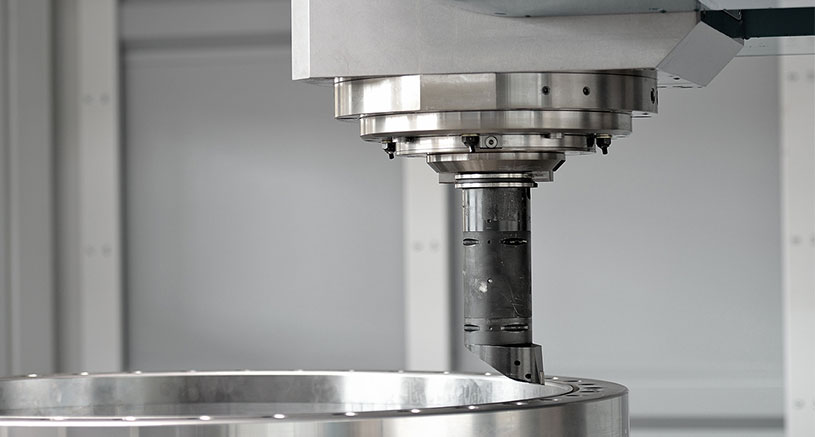

Whole original SPEEDMAT HP-marked work-area photograph.

PAMA Speedmat HP is a configurable horizontal machining-centre family with a T-type arrangement, moving table and column, and centrally mounted headstock. Begin with the faces, deep bores and datum sequence of the actual housing or other heavy workpiece. A fixed horizontal H head, tilting HVA/A-HD head and extending W/WD boring spindle are different access choices; they do not form one universal standard build.

The original English technical sheet marked November 2022 covers HP1–HP7 with family ranges of X 2200–4600, Y 1700–3500 and Z 2000–3200 mm, swing diameter 2200–4600 mm, table/pallet sizes 1000 × 1000 to 2000 × 2500 mm and a load ceiling up to 35,000 kg. It does not map every range endpoint to one particular size. Obtain a selected model, one travel set, loaded fixture envelope and table load diagram rather than combining all ceilings.

The H direct-drive reference gives 94 kW and 1793 Nm at S1, with a 5000 rpm speed ceiling. HVA lists 74 kW S1 and 609 / 286 Nm with 8000 / 12,500 rpm variants. W uses two transmission ranges with 130–160 mm boring-spindle diameter and 800 mm W travel; WD is a separate direct-drive alternative. Ask for the chosen head, torque curve, tool projection and boring-spindle extension needed by the drawing.

The HPT mill/turn branch has its own range: X 2200–3800 mm, round table/pallet Ø1250–2500 mm, load up to 15,000 kg and turning speed up to 350 rpm. HP milling capacity is not that turning package. Confirm table speed versus eccentric rotating load, required attachments, tools, pallets and recovery sequence. Agree a current build revision and a trial that measures the released workpiece and full elapsed cycle, including exchanges and inspection.

Catalog specifications

Architecture
T-type; moving table and column; central headstock
Family sizes
HP1–HP7; exact build to select
Family X / Y / Z ranges
2200–4600 / 1700–3500 / 2000–3200 mm
Family swing-diameter range
2200–4600 mm
Family table / pallet range
1000 × 1000 to 2000 × 2500 mm
Family load ceiling
Up to 35,000 kg; selected build/load diagram required

Related catalog records

Additional specifications

H head reference
94 kW / 1793 Nm S1; speed ceiling 5000 rpm
HVA head variants
74 kW S1; 609 / 286 Nm; 8000 / 12,500 rpm
W boring-head range
Ø130–160 mm; W stroke 800 mm; two transmission ranges
Family rapid-feed ceiling
X / Y / Z up to 50,000 mm/min
HPT separate turning-table range
Ø1250–2500 mm; up to 15,000 kg and 350 rpm; load/speed envelope to confirm
Technical-sheet revision
November 2022; current signed build required

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
