PAMA Speedmat VM

PAMA (Shanghai) Machine Tool Co., Ltd.

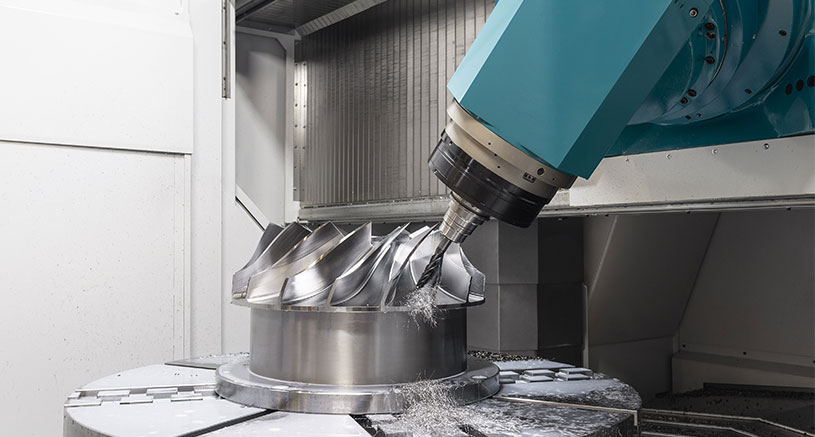

Whole original VM family tilting-head work-area photograph; size and delivered equipment vary.

PAMA Speedmat VM arranges a fixed portal, moving crossrail and rotary table around a vertically approached workpiece. Its HVA and A tilting heads offer different cutting approaches, while VM milling and VMT mill/turn are separate configurations. Start with the blank, fixture, tilted holder sweep and accessible faces; a rotary swing diameter does not establish every collision-free cutting position.

The English technical sheet updated November 2022 covers VM1–VM3 with family travel ranges X 1700–2700, Y 1500–2700 and Z 1300–1700 mm, swing diameter 1500–3000 mm, table/pallet sizes 1000 × 1000 to 2000 × 2000 mm and load up to 12,000 kg. Request the selected size, head and fixture envelope rather than treating these endpoints as one delivered machine. Include portal and crossrail clearance in the tilted-tool drawing.

The VM HVA/A head references pair 84 / 85 kW with 901 / 450 Nm at S6-40%, using 8000 / 12,500 rpm variants. These are not the S1 continuous-duty ratings published for HP heads. HVA A-axis contouring/clamping torque is 4000/8000 Nm, while the A head gives 5000/10,000 Nm; clamping does not describe simultaneous contouring. Obtain continuous-duty curves and an operation list separating indexed and interpolated cuts.

The VMT branch retains the published family travel and swing ranges but uses Ø1250–2200 mm table/pallet sizes, load up to 8000 kg and turning speed up to 350 rpm. Define the proposed turning load/speed envelope, balance, tool map, head/pallet exchanges and chip handling. PAMA describes sensor/software and automatic-exchange possibilities; agree their delivered scope and demonstrate recovery and released-part inspection in the complete acceptance cycle.

Catalog specifications

Architecture
Fixed portal; moving crossrail and rotary table
Family sizes
VM1–VM3; exact build to select
Family X / Y / Z ranges
1700–2700 / 1500–2700 / 1300–1700 mm
Family swing-diameter range
1500–3000 mm
Family table / pallet range
1000 × 1000 to 2000 × 2000 mm
Family load ceiling
Up to 12,000 kg; selected build/load diagram required

Related catalog records

Additional specifications

HVA / A spindle variants
84 / 85 kW and 901 / 450 Nm at S6-40%; 8000 / 12,500 rpm
HVA A-axis torque
4000 Nm contouring / 8000 Nm clamping
A-head A-axis torque
5000 Nm contouring / 10,000 Nm clamping
Family rapid-feed ceiling
X / Y / Z up to 50,000 mm/min
VMT separate turning-table range
Ø1250–2200 mm; up to 8000 kg and 350 rpm; load/speed envelope to confirm
Technical-sheet revision
November 2022; current signed build required

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
