Shengong turning

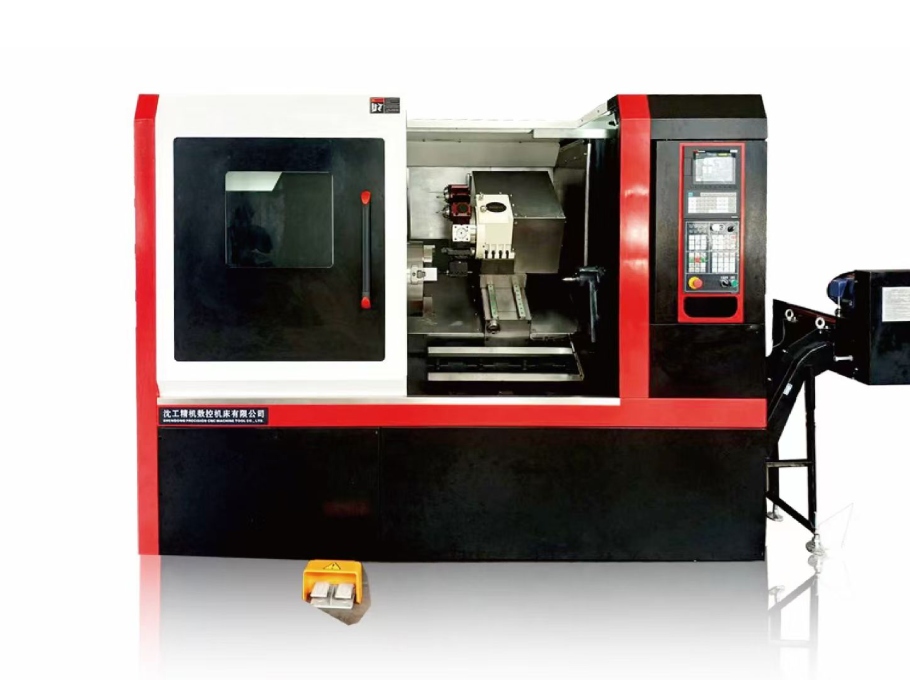

Shengong SG500CXF
Wuxi Shengong Precision CNC Machine Tool Co., Ltd. · Wuxi
- Swing over bed500 mm
- Maximum cutting diameter, shaft / disc280 / 400 mm
- Maximum turning length450 mm
- Chuck size8 inch
- Spindle noseA2-6
Shengong SG500CXF belongs to the manufacturer’s CNC turning-and-milling series. Its model-specific column gives 500 mm swing over the bed, a 280 mm maximum cutting diameter for shafts and 400 mm for disc parts. Maximum turning length is 450 mm, which is distinct from the longer Z-axis travel available to position the tooling.
The published configuration has an 8-inch chuck, an A2-6 spindle nose and a 52 mm bar-capacity rating. Maximum spindle speed is 2500 rpm with a 15 kW motor. X and Z travels are 280 and 600 mm, and both axes have 20 m/min rapid traverse. Tailstock travel and quill stroke are separately listed as 350 and 100 mm.
The series page does not establish a driven-tool spindle speed, milling motor rating or a Y-axis specification for this particular column. Confirm those functions and the proposed turret package before planning cross-drilling or milling operations. Submit a drawing with turning surfaces, cross features, workholding and tailstock needs through the RFQ, and identify the required control from the offered alternatives.
Is a Y axis established for this model?
The reviewed specification does not establish a Y-axis rating. Request the exact driven-tool and axis configuration for the required milling features.
