Skymaster VF108P
3-axis machining · Ningbo Skymaster Precision Machinery Co., Ltd.
| X / Y / Z travel | 1080 / 600 / 600 mm |
|---|---|
| Table size | 1280 × 600 mm |
| Baseline spindle interface | HSK-A63 |
| Baseline maximum spindle speed | 15,000 rpm, direct driven |
| Spindle motor power continuous / maximum | 9 / 15 kW |
| Spindle torque continuous / maximum | 57.3 / 120 Nm |

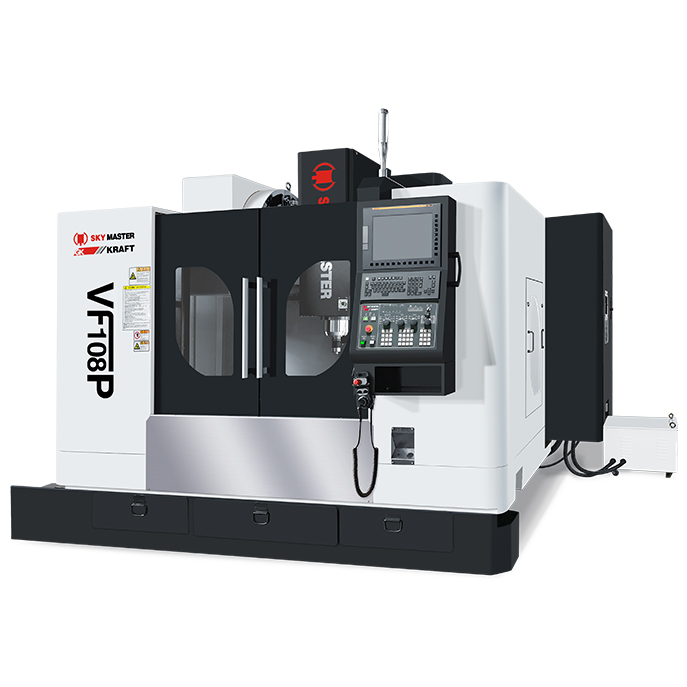

Whole matching original VF108P photograph; selected spindle/control/accessories to agree.
VF108P is SKY MASTER’s three-axis high-speed-series reference with 1080 mm X travel, 600 mm Y travel and 600 mm Z travel, and a 1280 × 600 mm table. Its Z stroke is longer than the VF1290 table’s 500 mm reference. Compare the entire loaded fixture, part height and longest holder rather than selecting by the part outline alone. Request spindle-nose limits, tool withdrawal and the permitted fixture mass/offset; the exact technical table does not supply a table-load rating here.
The baseline specifies a direct-driven 15,000 rpm HSK-A63 spindle, 9 kW continuous/15 kW maximum motor power and 57.3 Nm continuous/120 Nm maximum torque. These duty distinctions matter for sustained roughing. Obtain the speed/torque curve and allowable cutting duty at the intended rpm before relying on maximum ratings. The configuration table offers BBT40 and higher-speed electric-spindle alternatives; they are different selected builds, not extra baseline capabilities.
FANUC 0i-MF Plus is the listed standard control; Mitsubishi M80A and Siemens 828D are listed options. Arm and chain magazines appear as alternatives rather than one established standard capacity. Specify the holder interface, occupied tool diameter/length/mass, sister tools and largest assembly. The list marks spindle cooling and certain enclosure services standard, while through-spindle coolant, chain chip conveyor, measuring system and absolute linear scales are optional. Agree the actual package rather than assuming every line is included.
Trial the hardest feature with the actual material, fixture, tool projection and coolant. Inspect agreed geometry after release and distinguish machine positioning/ballbar records from finished-part results. The table gives 3930 × 3510 × 2850 mm machine dimensions and 6900 kg mass; the original layout also depicts service and door/control-swing space. Obtain foundation, lifting and maintenance clearances for the delivered package. The whole original photo is visibly VF108P and does not prove every offered accessory is fitted.
