Skymaster VF1290

Skymaster VF1290 manufacturer image

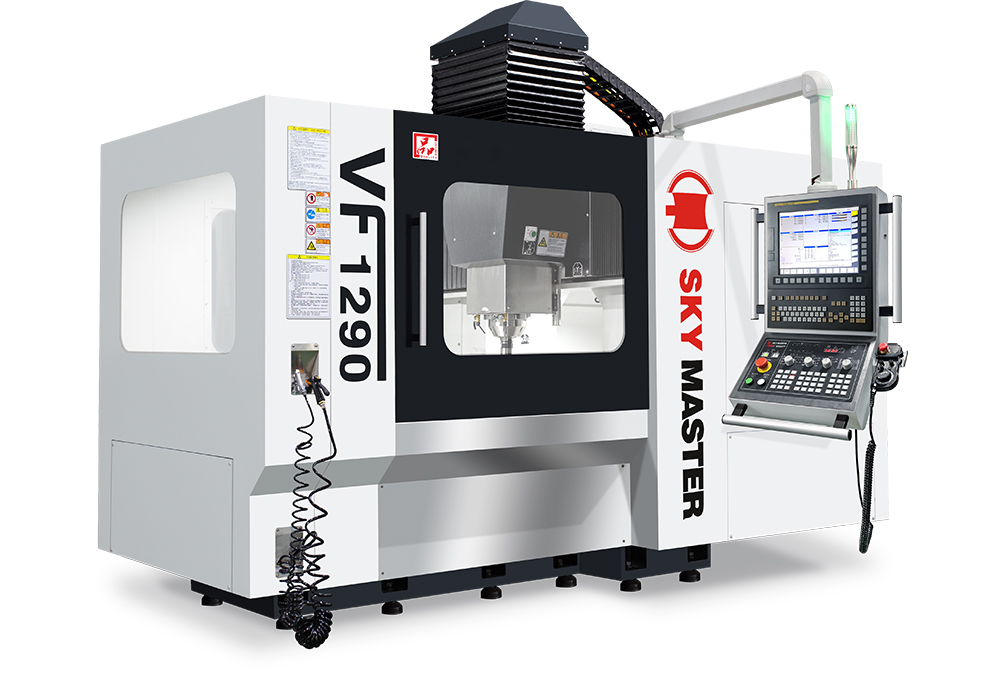

Whole matching original VF1290 photograph; selected spindle/control/accessories to agree.

VF1290 is a three-axis high-speed-series reference with 1200 mm X, 800 mm Y and 500 mm Z travel and a 1320 × 800 mm table. It has more Y travel than VF108P but less listed Z stroke. Start with the fixture and the longest tool/holder at the tallest and deepest feature. A larger table or travel is not proof of spindle-nose clearance, permitted loaded-table mass or the complete operating envelope; obtain those limits for the quoted build.

The manufacturer separates base VF1290, VF1290A and VF1290B. Base: HSK-A63, 15,000 rpm direct drive, 9/15 kW and 57.3/120 Nm continuous/maximum. A: HSK-A63, 24,000 rpm built-in spindle, 30/39 kW and 29.1/37.8 Nm. B: HSK-E50, 36,000 rpm built-in spindle, 20/26 kW and 10.4/13.5 Nm. Keep these coherent columns separate. Higher maximum rpm or motor power does not establish more torque at the required cut; request complete duty curves and holder speed/balance limits.

The base lists FANUC 0i-MF Plus while A/B list Mitsubishi M830W; optional controls must be specified separately. The configuration distinguishes A63 magazines from the E50 drum route. Define occupied positions, diameter, length, mass and sister tools with the selected spindle. Absolute linear scales and a coil conveyor are marked standard in this model list; chain conveyor, through-spindle coolant, measuring and collision-avoidance systems are marked optional. A probing function or thermal compensation is not an accepted part result without calibration and agreed datums.

Catalog specifications

X / Y / Z travel
1200 / 800 / 500 mm
Table size
1320 × 800 mm
Base spindle interface / speed
HSK-A63 / 15,000 rpm direct drive
Base power continuous / maximum
9 / 15 kW
Base torque continuous / maximum
57.3 / 120 Nm
A variant interface / speed
HSK-A63 / 24,000 rpm built-in spindle

Trial representative roughing and finishing with the actual material, fixture, tools and cooling, recording full elapsed time, wear and thermal conditions. Inspect released-part geometry and finish separately from the factory’s machine inspection reports. The model table gives 4220 × 3350 × 3215 mm machine dimensions and 12,000 kg mass; door/control movement and service space extend beyond the body in the original drawing. Confirm foundation, access and destination support. The whole matching photo is labelled base VF1290 and is not a photograph proving every A/B option.

Other Skymaster rows

Additional specifications

A variant power / torque continuous→maximum
30→39 kW / 29.1→37.8 Nm
B variant interface / speed
HSK-E50 / 36,000 rpm built-in spindle
B variant power / torque continuous→maximum
20→26 kW / 10.4→13.5 Nm
Listed base / A-B controls
FANUC 0i-MF Plus / Mitsubishi M830W respectively
Machine dimensions L/W/H
4220 / 3350 / 3215 mm; service footprint separate
Machine mass
12,000 kg
Magazine configurations
A63 and E50 alternatives separate; quoted capacity to confirm
Selected accessories
Linear scales and coil conveyor listed standard; probing and through-spindle coolant optional

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
