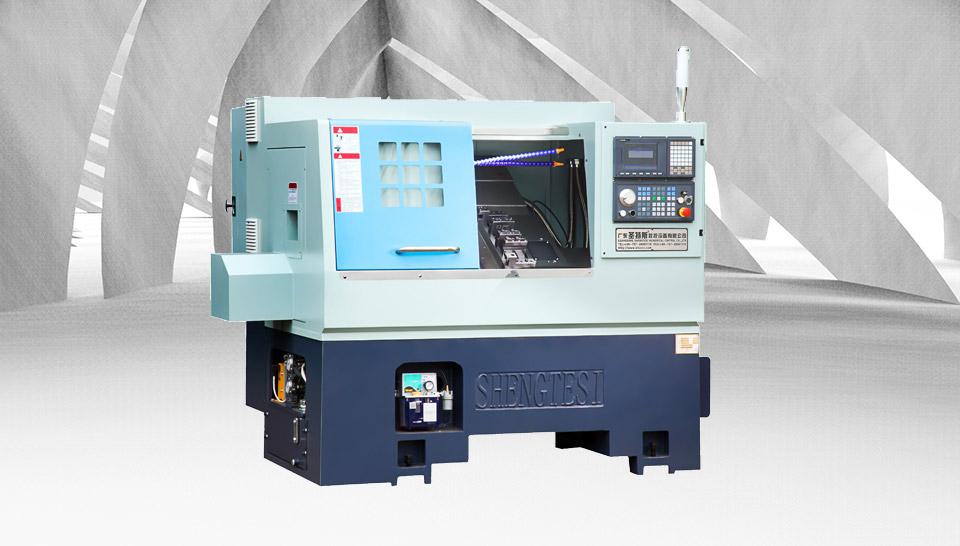

STS H46

Guangdong STS CNC Equipment Co., Ltd. · Foshan

  1. Maximum swing400 mm
  2. Maximum turning diameter320 mm
  3. X travel, diameter programming800 mm
  4. Z travel250 mm
  5. Spindle noseA2-5

STS H46 is an H-series slant-bed CNC lathe with a T-shaped gang-tool arrangement. Its model column gives a 56 mm spindle bore and 45 mm bar capacity, A2-5 nose and nominal six-inch chuck. The series lists 400 mm swing, 320 mm maximum turning diameter and 250 mm Z travel. Assess the actual jaws, stock projection, boring bars and adjacent tools together; these separate limits are not an unrestricted part envelope.

The X entry is explicitly 800 mm in diameter programming, rather than 800 mm physical cross-slide stroke. The shared table includes other axis/support entries whose configuration needs an actual layout. Prepare an operation-ordered gang-tool drawing with facing, turning, boring and cutoff approaches. A turret and driven-head equipment are optional arrangements; state which is supplied instead of assuming both from the wider catalogue.

Syntec control and a sleeve-type spindle are marked standard, while FANUC and an electric spindle are optional. Maximum speed is 4000 rpm; the 5.5 kW spindle-motor and 7.5 kW spindle-drive entries are separate figures. Chuck/collet, feeder, catcher, chip conveyor and a preselected manipulator are options. A separately offered lengthened version adds 80 mm Z with changes to enclosure size and mass; it is not the base 250 mm configuration.

For acceptance, run the actual bar material and complete tool sequence through cutoff and collection. Inspect the released part against its turning and bore datums, include subsequent back-face work and demonstrate feed/interruption recovery. Agree accepted-part measurement, tool replacement, control backups and destination commissioning with the chosen workholding and automation.

Additional specifications

Nominal chuck size in model table
6 inches; workholding package requires confirmation
Spindle bore
56 mm
Maximum bar diameter
45 mm
Maximum spindle speed
4000 rpm
Spindle motor
5.5 kW
Spindle drive power
7.5 kW
Rapid feed
25 m/min
Standard control
Syntec
Optional control
FANUC
Machine dimensions
2230 × 1560 × 1770 mm
Machine weight
2400 kg
Total machine power
11 kW

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
