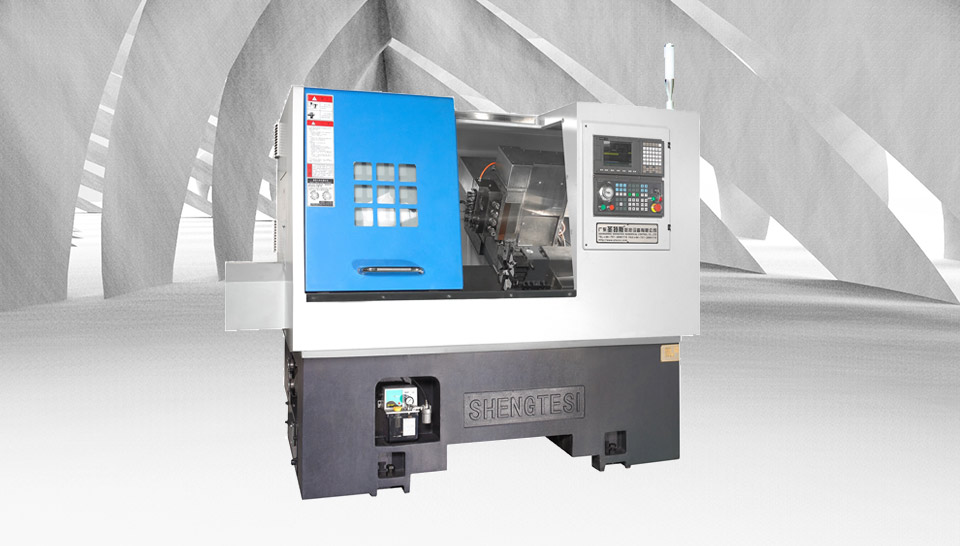

STS HXY46

Guangdong STS CNC Equipment Co., Ltd. · Foshan

  1. Swing capacity160 mm
  2. Maximum turning diameter150 mm
  3. X travel800 mm, diameter-programmed value
  4. Z travel250 mm
  5. Y travel200 mm total

STS HXY46 is a Y-axis turning–milling configuration for a defined combination of turned surfaces and cross features. Its table gives 160 mm swing and 150 mm maximum turning diameter, 45 mm bar capacity through a 56 mm spindle bore, an A2-5 nose and nominal six-inch chuck. These values differ materially from H46; do not inherit H46’s larger cutting envelope simply because both accept the same bar size.

Z travel is 250 mm and Y travel is 200 mm total, not ±200 mm. X is explicitly an 800 mm diameter-programmed entry. Map each side hole, end-face feature, flat or slot to the required driven head, holder projection and datum. The source lists side, end-face and other driven heads as options, but does not establish every head’s power, tooling interface or control functions.

A sleeve-type spindle and Syntec control are standard; electric spindle and FANUC are optional. The HXY table marks hydraulic spindle braking standard and a turret and the listed automatic manipulator unavailable. Feeding, catching and chip conveying remain selectable accessories. Braking and Y motion alone do not demonstrate continuous C-axis contouring, spindle indexing accuracy or synchronous tapping: name the required functions and prove them in the drawing-specific trial.

The HXY46 column gives 4000 rpm, a 5.5 kW spindle motor, a separate 11 kW drive entry, 2100 × 1520 × 1940 mm and 2600 kg. The rapid-feed row repeats an axis label and is omitted until corrected. Run the finished-part sequence with the quoted heads and chuck/collet, measure cross features against the turned datum after release, and include cutoff, collection, rejected parts and any second operation in accepted output.

Additional specifications

Spindle nose
A2-5
Chuck size
Nominal 6 inch; ordered chuck/collet package to be specified
Spindle bore
56 mm
Bar capacity
45 mm
Maximum spindle speed
4000 rpm
Spindle motor
5.5 kW
Machine dimensions
2100 × 1520 × 1940 mm
Machine weight
2600 kg
Standard control
Syntec
Optional control
FANUC
Spindle drive entry
11 kW; separate from 5.5 kW motor
Spindle brake
Hydraulic, standard
Driven heads
Optional side/end-face/other heads; order-specific
Turret / listed manipulator
Unavailable in reviewed option table

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
