Sunrise CNC TPP103

punching · Shandong Sunrise CNC Machinery Co., Ltd.

Catalog figures — see source review
Maximum workpiece size1500 × 800 mm
Maximum punching diameter26 mm
Plate thickness5–25 mm
Punching force1000 kN
Marking force800 kN
Minimum hole-to-edge distance25 mm
Sunrise CNC TPP103 manufacturer image

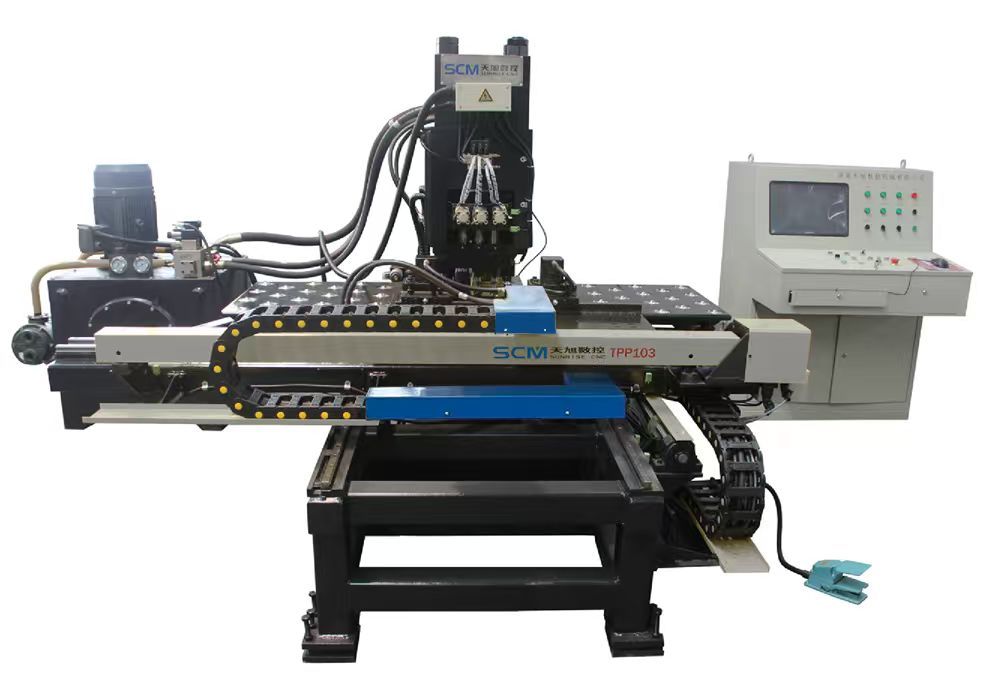

Manufacturer image of the TPP103/TPPR103 product family; specifications on this page follow the TPP103 column.

Sunrise CNC TPP103 is a CNC hydraulic punching and marking machine for connection plates and related structural-steel parts. The TPP103 column lists a 1500 × 800 mm workpiece envelope, 5–25 mm plate thickness and a maximum punching diameter of 26 mm. Material, hole size and thickness must be checked as a combination when selecting tooling.

The machine has a welded C-frame structure and three die positions, including one marking station, with automatic station switching. Servo motors and ball screws position the plate in X and Y, while a ball-supported table helps carry the workpiece. The stated punching force is 1000 kN and marking force is 800 kN.

The catalog allows twelve characters of 14 × 10 × 19 mm and specifies a 25 mm minimum hole-to-edge distance. Programs can be prepared from AutoCAD drawings or lofting software. Submit plate grade, hole pattern, marking content and blank dimensions through RFQ. This listing uses the TPP103 values; the adjacent reinforced TPPR103 column has different force and hole-capacity ratings.

Does this listing use the reinforced TPPR103 ratings?

No. TPP103 is rated at 1000 kN punching force and 26 mm maximum hole diameter in the reviewed table.

Same listing
TPD2016

Additional specifications

Character dimensions
14 × 10 × 19 mm
Character quantity
12
Die stations
3, including one marking station
Programming
AutoCAD drawing or lofting software
Approximate dimensions
3200 × 3000 × 1900 mm

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
